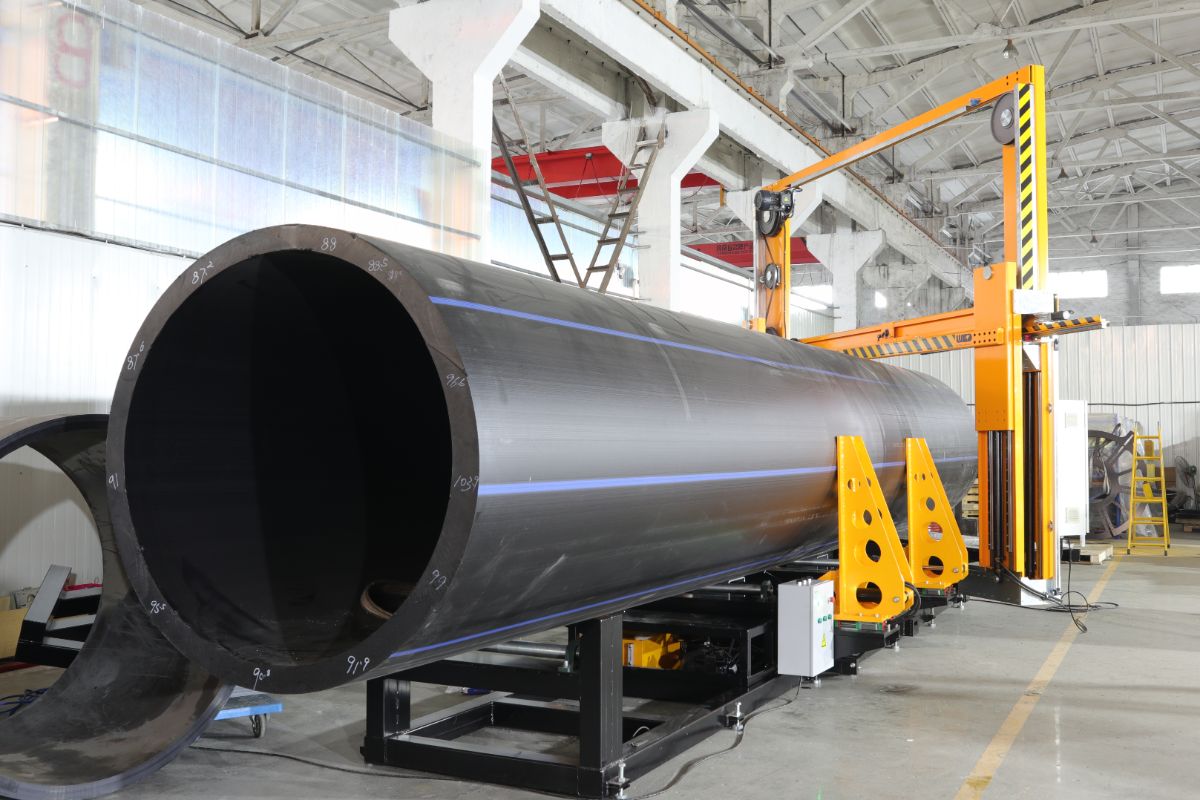

PolySaw2000/80

Hydraulically operated pipe saw specifically produced for the preparation of pipe segments in HDPE, PP and other thermoplastic materials, used for the production of bends, tees and other fabrications. Capacity 1200 to 2000mm / 48 to 80". Cutting angl

Read More REQUEST A QUOTE

SAFETY

PolySaw2000. Hydraulically operated pipe saw. Capacity 1200 to 2000mm / 48 to 80" HDPE & PP pipe. Cutting angle up to 67 degrees.

Standard Features

  • Cutting range 1200 to 2000mm OD / 48 to 80"
  • Capacity 2000mm & 1800mm maximum SDR 17. 1600mm, 1400mm & 1200mm maximum SDR 13.6
  • 67 degree maximum cutting angle allows production of segments for bends, tees and Y-branch tees.
  • Angular cutting error equal to or less than 1 degree.
  • Genuine 24 month international warranty.
  • 400 volt 3 phase 50 Hz (3.7 kw 8.3 A) / 220 volt 3 phase 60 Hz
  • Please note technical specifications of Worldpoly machines may change without notice

Technical Specifications

General

Cutting range 1200 to 2000mm OD / 48 to 80"
Capacity 2000mm & 1800mm maximum SDR 17. 1600mm, 1400mm & 1200mm maximum SDR 13.6
67 degree maximum cutting angle allows production of segments for bends, tees and Y-branch tees.
Angular cutting error equal to or less than 1 degree.
Please note technical specifications of Worldpoly machines may change without notice

Warranty

Genuine 24 month international warranty.

Electric

400 volt 3 phase 50 Hz (3.7 kw 8.3 A) / 220 volt 3 phase 60 Hz

MORE ABOUT Workshop pipe saws

How do workshop poly pipes saws work?

Poly pipe saws are hydraulically operated saws specifically used for the production of angled HDPE pipe segments. Worldpoly pipe saws provide angled cuts anywhere from 0 degrees to 67 degrees accurately and ready to be welded in a workshop welding machine. Pipes cut using poly pipe saws are ready for butt welding either in the field or in the workshop.

Sizes of workshop pipe saws

Worldpoly manufactures machines that cut HDPE pipe segments anywhere from 90mm to 2000mm OD, with our team currently developing a pipe saw for pipes up to 3000mm in diameter.
