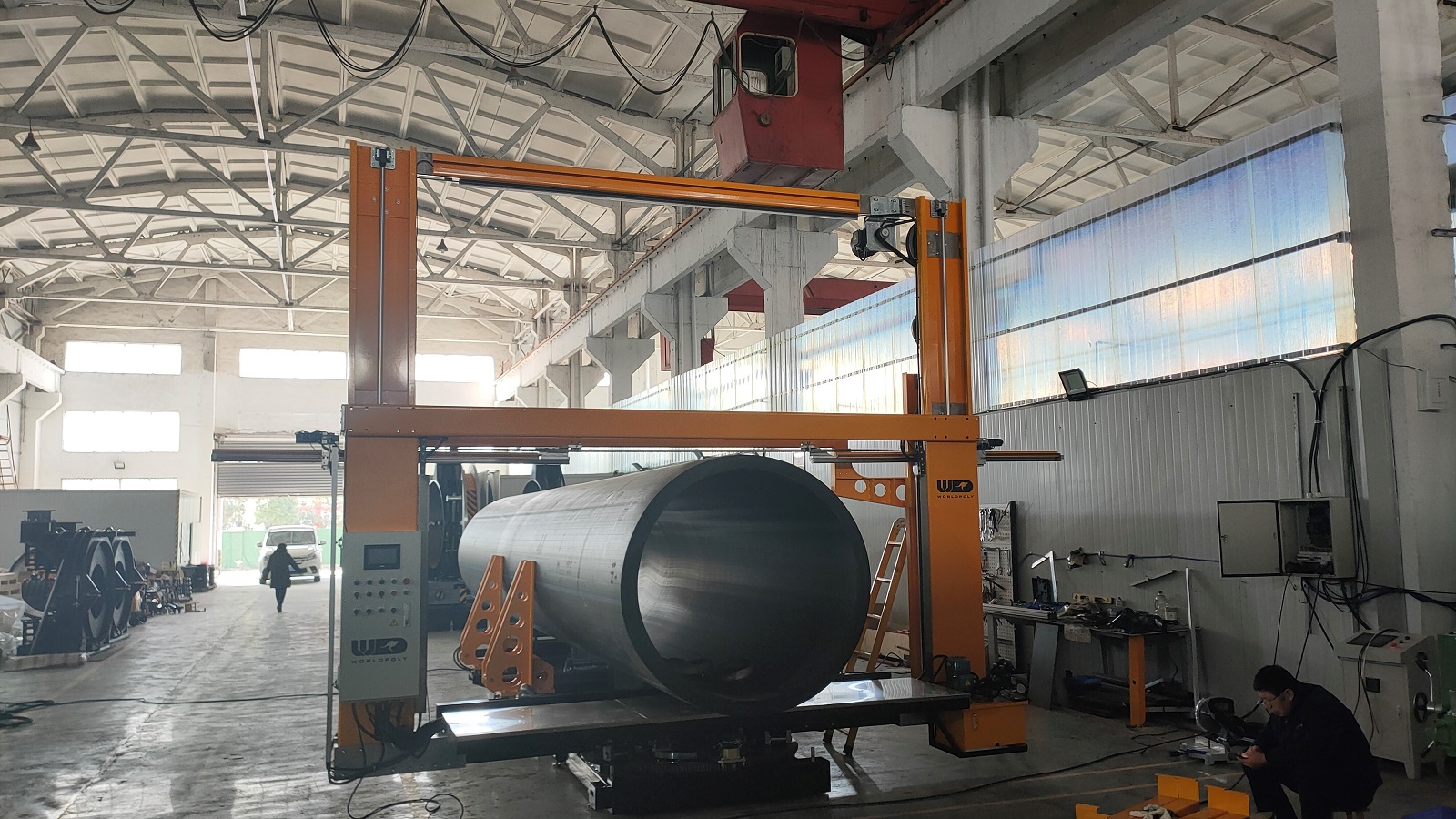

PolySaw1600/65

Hydraulically operated low-profile pipe saw specifically produced for the preparation of pipe segments in HDPE, PP and other thermoplastic materials, used for the production of bends, tees and other fabrications. Capacity 630 to 1600mm OD / 24" to 65

Read More REQUEST A QUOTE

SAFETY

PolySaw1600/65. Pipe saw specifically designed for the production of pipe segments used in the welding of HDPE and PP bends, tees, crosses and branch tees. Capacity 630 to 1600mm OD / 24" to 65" IPS at cutting angle up to 67 degrees..

Standard Features

  • Cutting range 630 OD / 24" IPS to 1600 OD 63" IPS
  • 67 degree maximum cutting angle allows production of segments for bends, tees and Y-branch tees.
  • Hydraulic opening and lock down 48”
  • Cutting feed is hydraulically controlled.
  • Infrared positioning.
  • Special saw blade available for thick walled pipe.
  • Angular cutting error equal to or less than 1 degree.
  • Genuine 12 month international warranty.
  • Speed of saw blade 250 m/min.
  • Safety:
  • - Emergency stop at operation panel.
  • - All electric operating buttons and handles are operated at 24DCV.
  • - Before saw blade is running,it alarms with both a flashing light and audible alarm for a few seconds.
  • - Equipped with saw blade detection device. Once saw blade is broken, machine will stop immediately.
  • - Saw blade guides expand and contract automatically once pipe diameter and fitting types has been selected, assuring close contact with pipe for blade protection.
  • - Saw guide travel is limited by proximity switches.
  • - Pipe or fitting is locked by hydraulic controlled bar - easy, safe and reliable.
  • - Low profile design, providing easy and safe reception of cut pieces.
  • 400 volt 3 phase 50 Hz (5.5 kw 13.4 A). 480 volt 3 phase 60 Hz option.
  • Weight 9,000kg
  • Please note technical specifications of Worldpoly machines may change without notice

Technical Specifications

General

Cutting range 630 OD / 24" IPS to 1600 OD 63" IPS
67 degree maximum cutting angle allows production of segments for bends, tees and Y-branch tees.
Hydraulic opening and lock down 48”
Cutting feed is hydraulically controlled.
Infrared positioning.
Special saw blade available for thick walled pipe.
Angular cutting error equal to or less than 1 degree.
Speed of saw blade 250 m/min.
Safety:
- Emergency stop at operation panel.
- Before saw blade is running,it alarms with both a flashing light and audible alarm for a few seconds.
- Equipped with saw blade detection device. Once saw blade is broken, machine will stop immediately.
- Saw blade guides expand and contract automatically once pipe diameter and fitting types has been selected, assuring close contact with pipe for blade protection.
- Saw guide travel is limited by proximity switches.
- Pipe or fitting is locked by hydraulic controlled bar - easy, safe and reliable.
- Low profile design, providing easy and safe reception of cut pieces.
Weight 9,000kg
Please note technical specifications of Worldpoly machines may change without notice

Warranty

Genuine 12 month international warranty.

Electric

- All electric operating buttons and handles are operated at 24DCV.
400 volt 3 phase 50 Hz (5.5 kw 13.4 A). 480 volt 3 phase 60 Hz option.

MORE ABOUT Workshop pipe saws

How do workshop poly pipes saws work?

Poly pipe saws are hydraulically operated saws specifically used for the production of angled HDPE pipe segments. Worldpoly pipe saws provide angled cuts anywhere from 0 degrees to 67 degrees accurately and ready to be welded in a workshop welding machine. Pipes cut using poly pipe saws are ready for butt welding either in the field or in the workshop.

Sizes of workshop pipe saws

Worldpoly manufactures machines that cut HDPE pipe segments anywhere from 90mm to 2000mm OD, with our team currently developing a pipe saw for pipes up to 3000mm in diameter.
