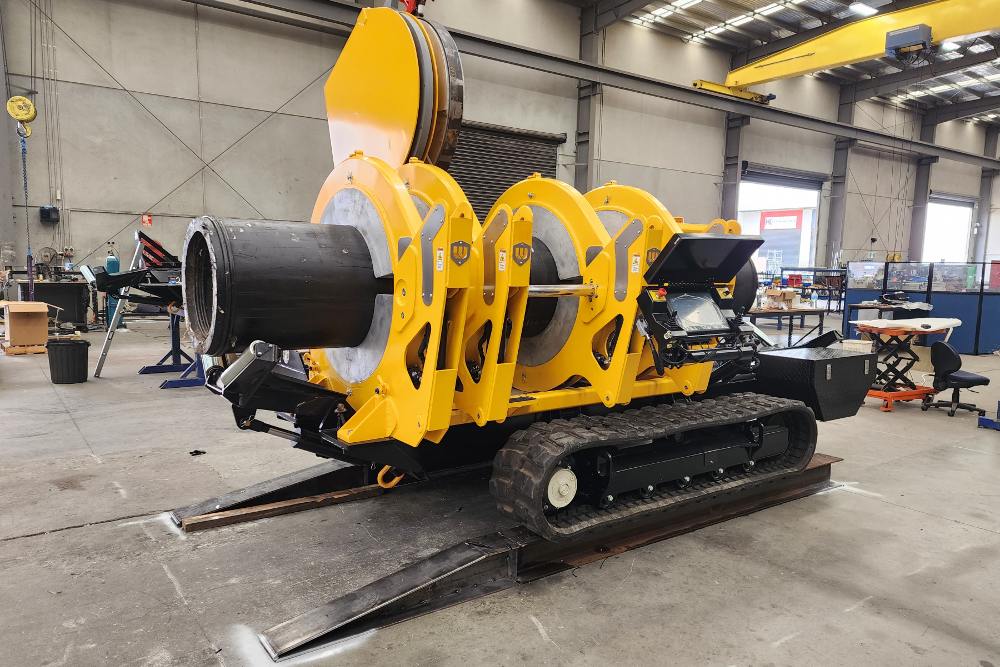

PolyForce36i Tracked
Arguably the fastest, safest, most consistent butt welding machine manufactured in Australia. Thanks to 5 years of research and development, coupled with Worldpolys' 60 years of PE pipeline experience the PolyForce36i ensures consistent butt welding.
Read More REQUEST A QUOTE
SAFETY
Worldpoly PolyForce36i HF Tracked High pressure butt welding machine including on-board data logger, intuitive CNC controls, hydraulically movable facing tool and heating plate, hydraulic open/close/locking of pipe clamps, stub welding device and 4 circles of IPS layer clamps, including 36", 32", 28", 24", 22"& 20". Tracked base includes low-noise 1800 rpm Yanmar diesel, external hydraulic pipe lifters and two speed rubber tracks with cordless remote.
Technical Specifications
| PolyForce36i Australian Engineered Butt Welding Machine, including on-board hydraulic pump, controls, hydraulically movable facing tool and heating plate, hydraulic open/close/locking of pipe clamps |
| Welding operation by CNC, includes 20,000 weld data logging. |
| Genuine 3 year international warranty. |
| 4 circles of IPS layer clamps, including 36", 32", 28", 24", 22"& 20". |
| Easily able to weld between clamps 3 and 4 for tight fittings and fabrications. |
| Entire welding frame with 4 clamps and complete hydraulic system easily removed for trench work, allowing accurate alignment. |
| Fork lift and overhead lifting points. |
| Includes two-piece reducing liners to weld pipe within the complete specified range: |
| Hydraulic open/close/locking of pipe clamps with clamp crash protection, and no operator contact during operation. |
| Hydraulically lifted cast Aluminium PTFE coated heating plate with electronic temperature control and insulated cover. |
| Hydraulically lifted and electrically operated cast Aluminium electric facing tool, with current overload protection. |
| High quality and remotely serviceable electro-hydraulic pump, PLC, valves and controls. |
| Operating voltage 400 volt 3 phase 50 Hz (30.8 kw, 50.2 A). Optional 480 volt 60 Hz. |
| Intuitive modular controls located in convenient operator position include: |
| Pipe clamps open, close and lock without operator contact. Ideal for Occupational Health and Safety requirements. |
| 2 x Cat3 Emergency stops. |
| Steerable wheeled base readily removable for trench work. |
| High quality wide profile all-terrain wheels and tyres. |
| External hydraulic pipe lifters front and rear. |
| External hydraulic pipe lifters front and rear. |
| Tool box including spare blades, thermocouple, temperature controller, tools etc |
| In-trench welding kit |
| Cylinder section 12,922 mm2 / 200.2 inch2. Optional cylinders available with increased force, or decreased if welding thin wall pipes. |
| Maximum pump pressure 250 bar / 3625 psi |
| Please note technical specifications of Worldpoly machines may change without notice. Please confirm at time of order. |
