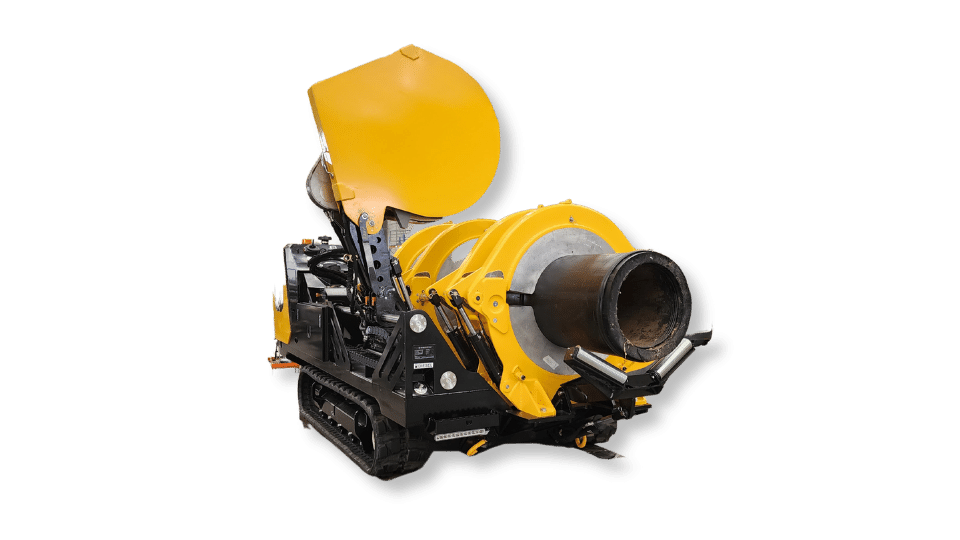

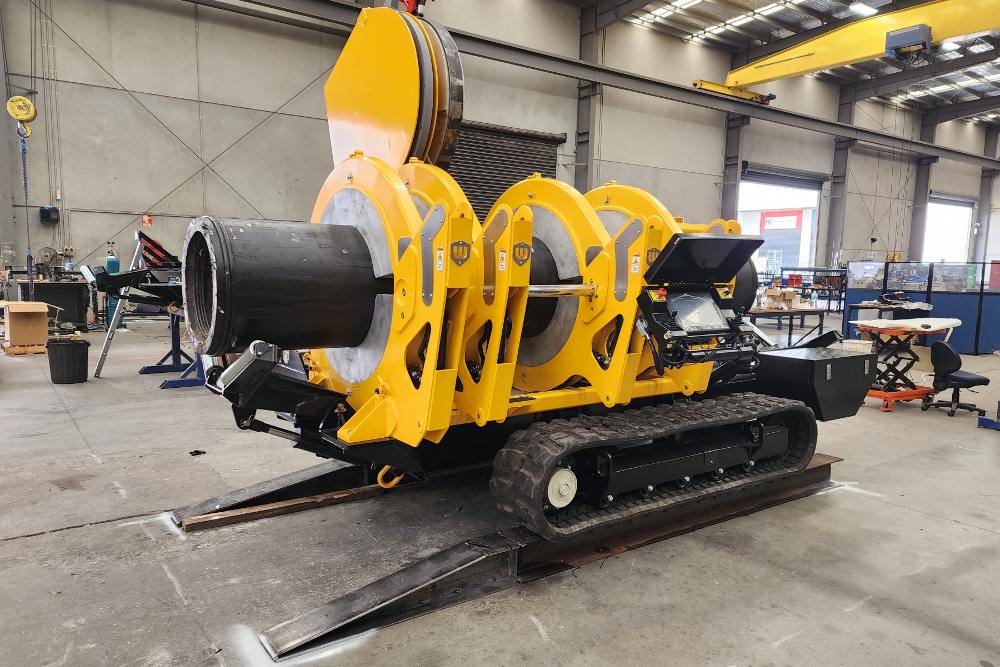

PolyForce1000i Tracked

Worldpoly PolyForce1000i Tracked. Australian designed and manufactured high-pressure tracked butt welding machine featuring safety, speed, consistency and ease of use. Intuitive operation using modern rugged electronics providing hydraulic open/clo



Worldpoly machines operate with far less downtime than you've become used to.

Technical Specifications

PolyForce1000i Australian Engineered Butt Welding Machine, including on-board hydraulic pump, controls, hydraulically movable facing tool and heating plate, hydraulic open/close/locking of pipe clamps
Welding operation by CNC, includes 20,000 weld data logging.
Genuine 3 year international warranty.
4 circles of metric liners including 1000, 1000x900, 1000x800, 1000x710, 1000x630, then 630x560 and 630x500mm,
Alternatively IPS layer clamps, including 1000mm, 36", 34" 32", 30", 28", 26", 24", 22" & 20"
Easily able to weld between clamps 3 and 4 for tight fittings and fabrications.
Entire welding frame with 4 clamps and complete hydraulic system easily removed for trench work, allowing accurate alignment.
Rated overhead lifting points.
Includes two-piece reducing liners to weld pipe within the complete specified range:
Hydraulic open/close/locking of pipe clamps with clamp crash protection, and no operator contact during operation.
Hydraulically lifted machined Aluminium PTFE coated heating plate with electronic temperature control and cover.
Hydraulically lifted and operated machined Aluminium electric facing tool
High quality and remotely serviceable electro-hydraulic pump, PLC, valves and controls.
Operating voltage 400 volt 3 phase 50 Hz (30.8 kw, 50.2 A). Optional 480 volt 60 Hz.
Intuitive modular controls located in convenient operator position include:
Pipe clamps open, close and lock without operator contact. Ideal for Occupational Health and Safety requirements.
2 x Cat3 Emergency stops.
External hydraulic pipe lifters front and rear.
Tool box including spare blades, thermocouple, temperature controller, tools etc
In-trench welding kit
Cylinder section 12,922 mm2 / 200.2 inch2. Optional cylinders available with increased force, or decreased if welding thin wall pipes.
Maximum pump pressure 250 bar / 3625 psi
Please note technical specifications of Worldpoly machines may change without notice. Please confirm at time of order.
