Worldpoly1600 Hydra HF
Worldpoly1600 Hydra HF. Hydraulically operated and CNC controlled butt-welding machine suitable for PE and PP pipes and fittings from 900 to 1600mm OD. Available to weld according to ISO 4427-2 SHP, POP003 SHP and ASTM high-force Standards, on-board
Read More REQUEST A QUOTE
SAFETY

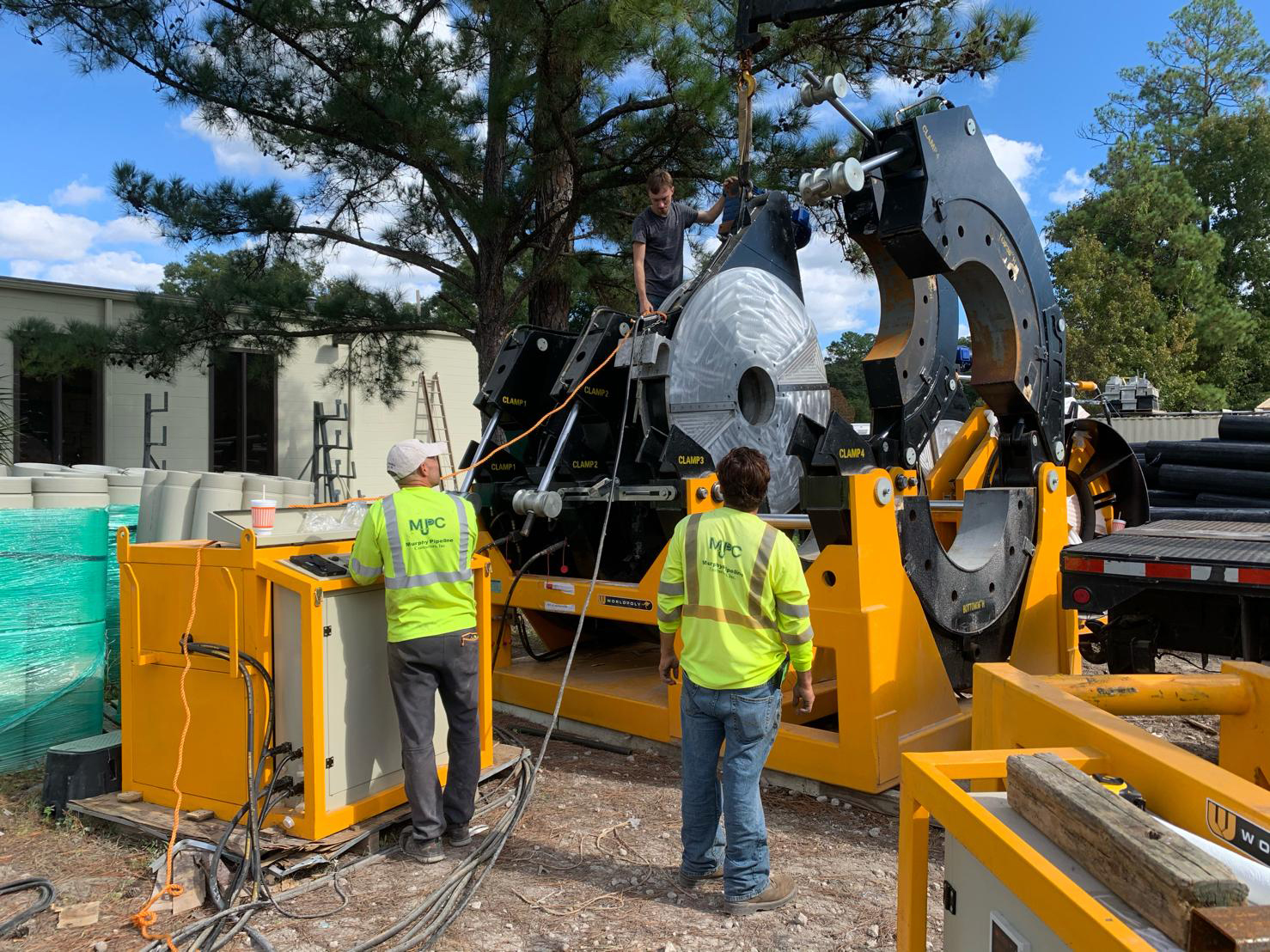

Worldpoly1600 Hydra HF butt welding machine including hydraulic main frame with clamps 1600mm, CNC welding control, hydraulic locking/open/close of main clamps, On-board data logging, electric facing tool & heating plate with stand and hydraulic control unit
Technical Specifications
General
| Standard welding range 1600mm SDR 17 to 1000mm SDR 11, or 32" DR 9 to 63" DR 17 IPS |
| CNC welding control of temperature, time and pressure using touch screen and tablet. |
| Hydraulic open/close/locking of main clamps |
| Main frame includes 4 steel main clamps of 1600mm diameter. |
| Alternatively main clamps diameter 63" IPS |
| Electric facing tool with current overload protection. |
| Aluminium PTFE coated heating plate with electronic temperature control. Heating plate automatically releases from pipe ends after heating. |
| Stand for heating plate and facing tool. |
| Tool box including tools, bolts etc. |
| Please note technical specifications of Worldpoly machines may change without notice |
Hydraulic
| Total cylinder section to your requirements - high, medium or low |
Electric
| 400 volt 3 phase 50/60 Hz (54 kw 86 A) |
| Minimum generator 400 volt 60 KVA. Check with your generator supplier for suitability. |
| Also available as 480 volt 3 phase 60 Hz |
Options
| One-piece clamps 1600 x 1400, 1600 x 1200, 1600 x 1000, 1600 x 1000 & 1200 x 900mm |
| Alternatively one-piece clamps 63" x 54", 63" x 48", 63" x 42" & 63" x 36" IPS |
Warranty
| Genuine 2 year international warranty |
