Debeader External 63-1200mm

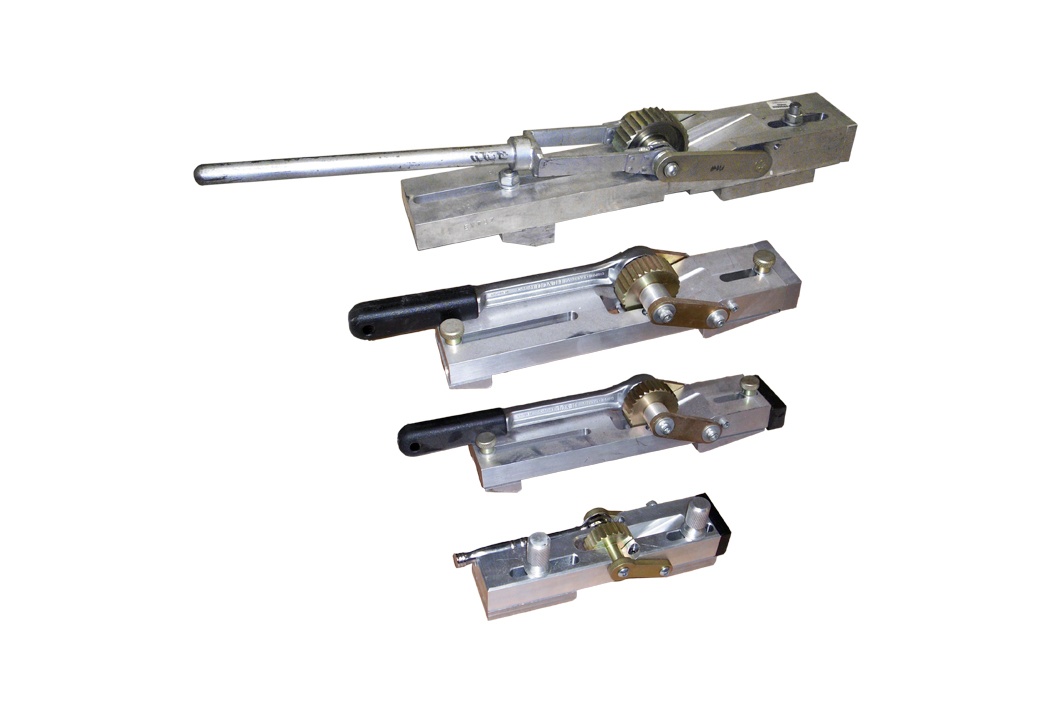

External pipe debeaders are designed to remove the external bead from a butt-fusion welded joint. The tool knocks on to the pipe bead, then alignment blocks slide against the pipe surface to guide it around the pipe. A blade then cuts under the bead,
External pipe debeaders are designed to remove the external bead from a butt-fusion welded joint. The tool knocks on to the pipe bead, then alignment blocks slide against the pipe surface to guide it around the pipe. A blade then cuts under the bead, but is careful to not damage the surface of the pipe. A handle helps pull the tool around the pipe, cutting the bead away. These tools are fully approved to the UK National Grid specifications GIS/PL2-5 and have been accepted for use on their gas networks and pipes.
Read More REQUEST A QUOTESAFETY
External debeading tool, capacity 63mm to 1200mm OD.
Technical Specifications
General
Operating range: Pipe from 63mm up to 1200mm OD |
Operating type: Manual |
Approvals: UK GIS PL-2.5 |
Operating Temperature: -40'C to +50'C |
Tool materials: Aluminiun, Steel |
Tool finish: Bright Zinc plate |
