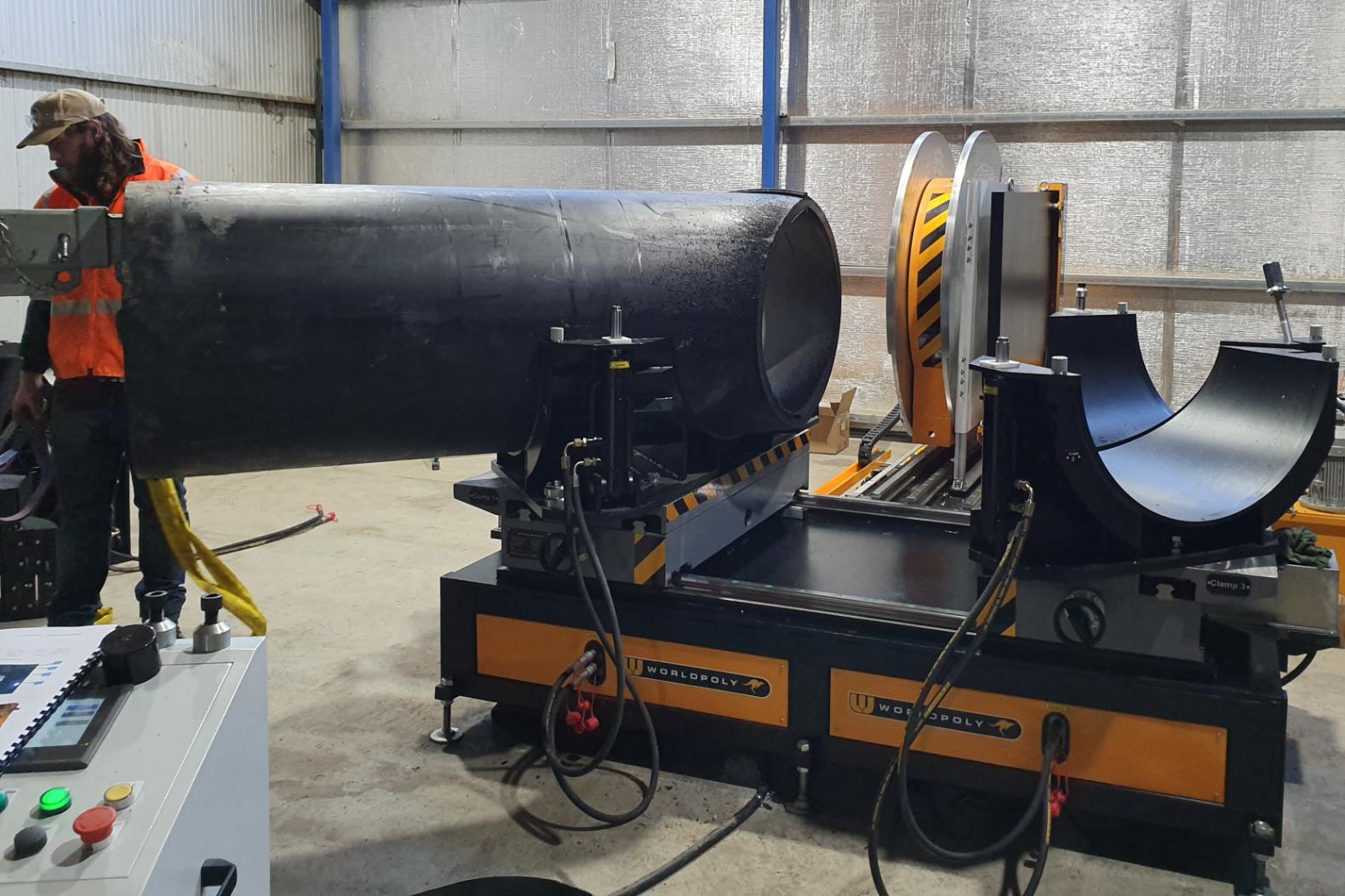

PolyWorkshop800i

Hydraulically operated workshop machine for the butt-welding of pipes and fittings in HDPE and PP. CNC operation provides correct parameters for every weld. Pivoting clamps allow for the fabrication of segmented bends of different radii. Optional c

Read More REQUEST A QUOTE

SAFETY

Workshop welding machine capacity 450 to 800mm OD. Ready to accept clamps for the production of bends, tees, crosses and branch tees in all of the above diameters. CNC operation with data logger.

Standard Features

  • Welding range 450 to 800 mm SDR 11 to DR 41.
  • Bend clamps allow production of segmented bends diameter 450, 500, 560, 630, 710 and 800mm OD.
  • Tee clamps produce 90 degree equal tees and crosses 450, 500, 560, 630, 710 and 800mm OD.
  • Wye / branch tee clamps produce true-Y, 45 and 60 degree equal Y-branch tees 450, 500, 560, 630, 710 and 800mm OD.
  • CNC touch-screen control of welding operations and integral data logger are standard.
  • German hydraulic seals.
  • 400 volt 3 phase 50 Hz (50.9 kw 79 A). Optional 60 Hz also available.
  • Genuine 2 year warranty on parts
  • Total cylinder area: 31.17cm²
  • Please note technical specifications of Worldpoly machines may change without notice

Technical Specifications

General

Welding range 450 to 800 mm SDR 11 to DR 41.
CNC touch-screen control of welding operations and integral data logger are standard.
Please note technical specifications of Worldpoly machines may change without notice

Hydraulic

German hydraulic seals.
Total cylinder area: 31.17cm²

Electric

400 volt 3 phase 50 Hz (50.9 kw 79 A). Optional 60 Hz also available.

Options

Bend clamps allow production of segmented bends diameter 450, 500, 560, 630, 710 and 800mm OD.
Tee clamps produce 90 degree equal tees and crosses 450, 500, 560, 630, 710 and 800mm OD.
Wye / branch tee clamps produce true-Y, 45 and 60 degree equal Y-branch tees 450, 500, 560, 630, 710 and 800mm OD.

Warranty

Genuine 2 year warranty on parts
