PolyWorkshop630i

Hydraulically operated workshop machine for the butt-welding of pipes and fittings in PE, PP and other thermoplastic materials. Optional pivoting clamps allow for the fabrication of segmented bends of different radii from 315 to 630mm OD, 315 to 630m

Read More REQUEST A QUOTE

SAFETY

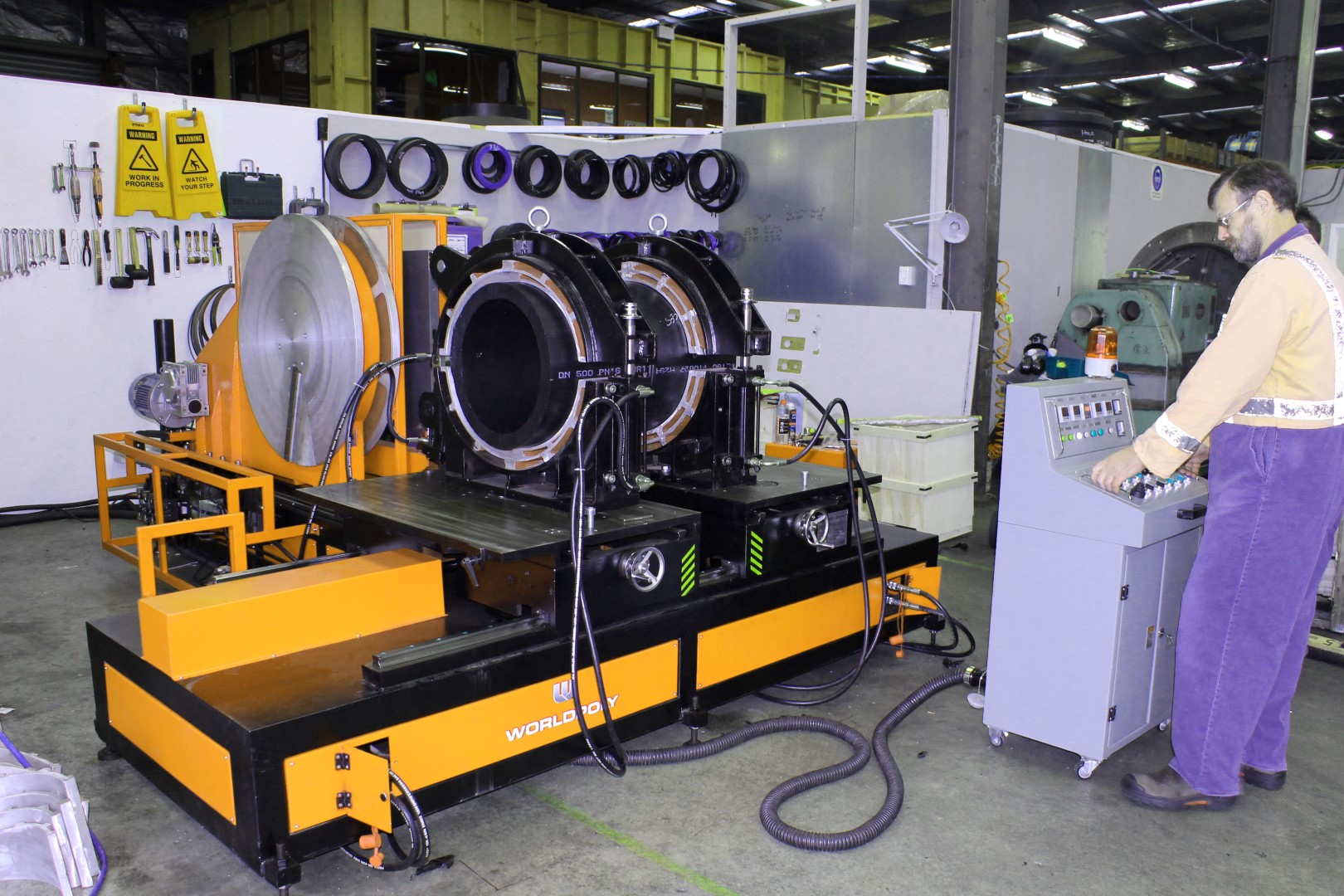

PolyWorkshop630i workshop welding machine capacity 315 to 630mm OD. Ready to accept clamps for the production of bends, equal tees & crosses and equal branch tees.

Standard Features

  • Welding range 315 to 630mm to SDR 9
  • Bend clamps allow production of segmented bends diameter 315, 355, 400, 450, 500, 560 & 630mm OD.
  • Tee clamps produce 90 degree equal tees and crosses diameter 315, 355, 400, 450, 500, 560 and 630mm OD.
  • Wye / branch tee clamps produce true-Y, 45 and 60 degree equal Y-branch tees 315, 355, 400, 450, 500, 560 and 630mm OD.
  • Hydraulic open/close and locking of main bend clamps. Optional for Tee clamps. Basic model is available without this feature.
  • German hydraulic seals.
  • CNC operation with touch-screen and integated 5000 weld data logger is standard
  • 400 volt 3 phase 50 Hz (32.7 kw 52.6 A). Optional 60 Hz also available.
  • Genuine 24 month international warranty.
  • Total cylinder area 19.63cm²
  • Please note technical specifications of Worldpoly machines may change without notice

Technical Specifications

General

Welding range 315 to 630mm to SDR 9
Hydraulic open/close and locking of main bend clamps. Optional for Tee clamps. Basic model is available without this feature.
CNC operation with touch-screen and integated 5000 weld data logger is standard
Please note technical specifications of Worldpoly machines may change without notice

Hydraulic

German hydraulic seals.
Total cylinder area 19.63cm²

Electric

400 volt 3 phase 50 Hz (32.7 kw 52.6 A). Optional 60 Hz also available.

Options

Bend clamps allow production of segmented bends diameter 315, 355, 400, 450, 500, 560 & 630mm OD.
Tee clamps produce 90 degree equal tees and crosses diameter 315, 355, 400, 450, 500, 560 and 630mm OD.
Wye / branch tee clamps produce true-Y, 45 and 60 degree equal Y-branch tees 315, 355, 400, 450, 500, 560 and 630mm OD.

Warranty

Genuine 24 month international warranty.
