PolyWorkshop48i HF

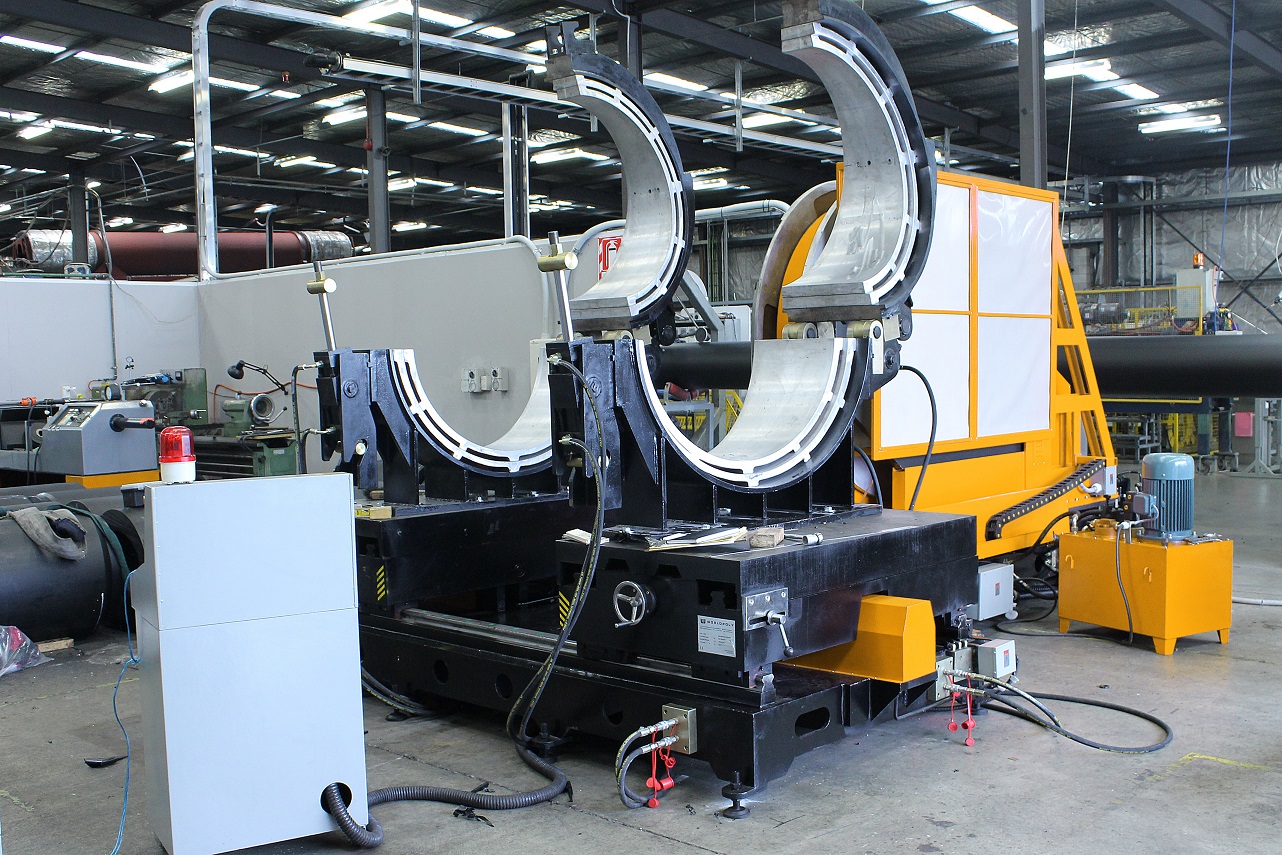

Hydraulically operated CNC controlled workshop machine for the butt-welding of pipes and fittings in HDPE. Optional pivoting clamps allow for the fabrication of fittings having different radii. Available are hydraulic open/close/locking main clam
Hydraulically operated CNC controlled workshop machine for the butt-welding of pipes and fittings in HDPE. Optional pivoting clamps allow for the fabrication of fittings having different radii. Available are hydraulic open/close/locking main clamps and insert liners required to produce 24" to 48" segment welded bends, manual open/close/locking mains clamps and insert liners required to produce 24" to 48" segment welded 90 degree tees and crosses, and optional main clamps to produce branch tees and true-wyes 24" to 48". Please note that unlike others, this machine produces ALL fittings in ALL diameters within the range. Welding is performed at variable force. CNC touch-screen control of welding operations and integral 20,000+ weld data logger are standard.
Read More REQUEST A QUOTE
SAFETY
PolyWorkshop48i workshop welding machine suitable to accept hydraulic open/close/locking main bend clamps, manual open/close/locking main tee and cross clamps, optional clamps for the production of 45 & 60 degree branch tees and true-wyes and all reducing liners required to produce bends, tees, crosses and branch tees diameter 24" to 48" IPS. Touch screen CNC operation with internal data logger.
Standard Features
- Welding range 24" to 32" DR 5 to DR 32, 36" DR 7.4 to 32, 42" DR 9 to 32, 48" DR 11 to 32
- CNC touch-screen control of welding operations and integral data logger are standard.
- Welding operations are at both high (ASTM) interface force and low (ISO, POP 003, DVS) low force
- Hydraulic open/close/locking of bend, tee and cross main clamps
- Specifications subject to change without notice. Please confirm at time of order confirmation.



Technical Specifications
General
Welding range 24" to 32" DR 5 to DR 32, 36" DR 7.4 to 32, 42" DR 9 to 32, 48" DR 11 to 32 |
CNC touch-screen control of welding operations and integral data logger are standard. |
Welding operations are at both high (ASTM) interface force and low (ISO, POP 003, DVS) low force |
Hydraulic open/close/locking of bend, tee and cross main clamps |
Specifications subject to change without notice. Please confirm at time of order confirmation. |
