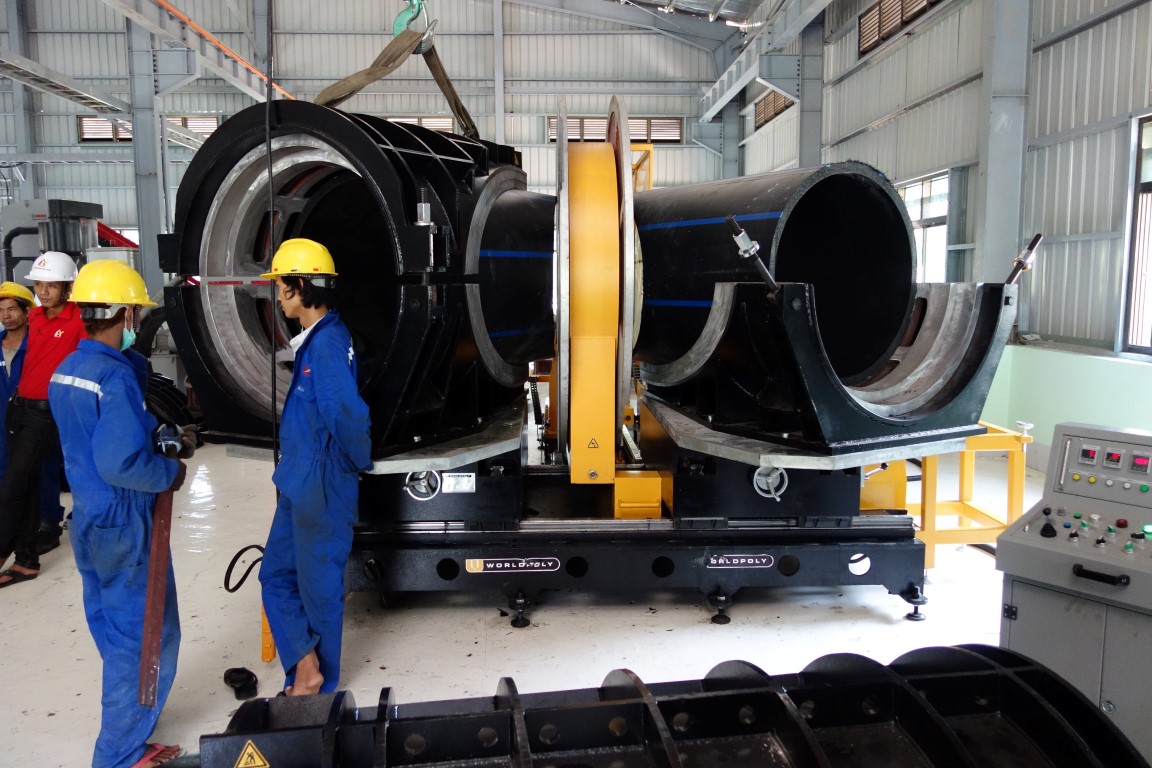

PolyWorkshop1200i

Hydraulically operated workshop machine for the butt-welding of pipes and fittings in HDPE and PP. CNC operation provides correct welding parameters, while on-board data logger saves quality control information. Optional pivoting clamps allow for th

Read More REQUEST A QUOTE

SAFETY

Workshop welding machine, ready to accept clamps for the production of bends, equal tees & crosses and equal branch tees from 630mm to 1200mm OD. CNC operation with on-board data logger.

Standard Features

  • Welding range 630 to 1200mm to SDR 9
  • Bend clamps allow production of segmented bends in diameters 630, 710, 800, 900, 1000 and 1200mm OD.
  • Tee and cross clamps produce 90 degree equal tees and crosses in diameters 630, 710, 800, 900, 1000 and 1200mm OD.
  • Wye / branch tee clamps produce true-Y, 45 and 60 degree equal Y-branch tees 630, 710, 800, 900, 1000 and 1200mm OD.
  • Hydraulic open-close and locking of main bend clamps. Basic machine is available without this option if requested.
  • German hydraulic seals.
  • Immediately accepts optional data logger.
  • 400 volt 3 phase 50 Hz (82.7 kw 130 A). Optional 60 Hz also available.
  • Genuine 12 month international warranty.
  • Total cylinder area: 38.46cm²
  • Please note technical specifications of Worldpoly machines may change without notice

Technical Specifications

General

Welding range 630 to 1200mm to SDR 9
Hydraulic open-close and locking of main bend clamps. Basic machine is available without this option if requested.
Immediately accepts optional data logger.
Please note technical specifications of Worldpoly machines may change without notice

Hydraulic

German hydraulic seals.
Total cylinder area: 38.46cm²

Electric

400 volt 3 phase 50 Hz (82.7 kw 130 A). Optional 60 Hz also available.

Options

Bend clamps allow production of segmented bends in diameters 630, 710, 800, 900, 1000 and 1200mm OD.
Tee and cross clamps produce 90 degree equal tees and crosses in diameters 630, 710, 800, 900, 1000 and 1200mm OD.
Wye / branch tee clamps produce true-Y, 45 and 60 degree equal Y-branch tees 630, 710, 800, 900, 1000 and 1200mm OD.

Warranty

Genuine 12 month international warranty.
