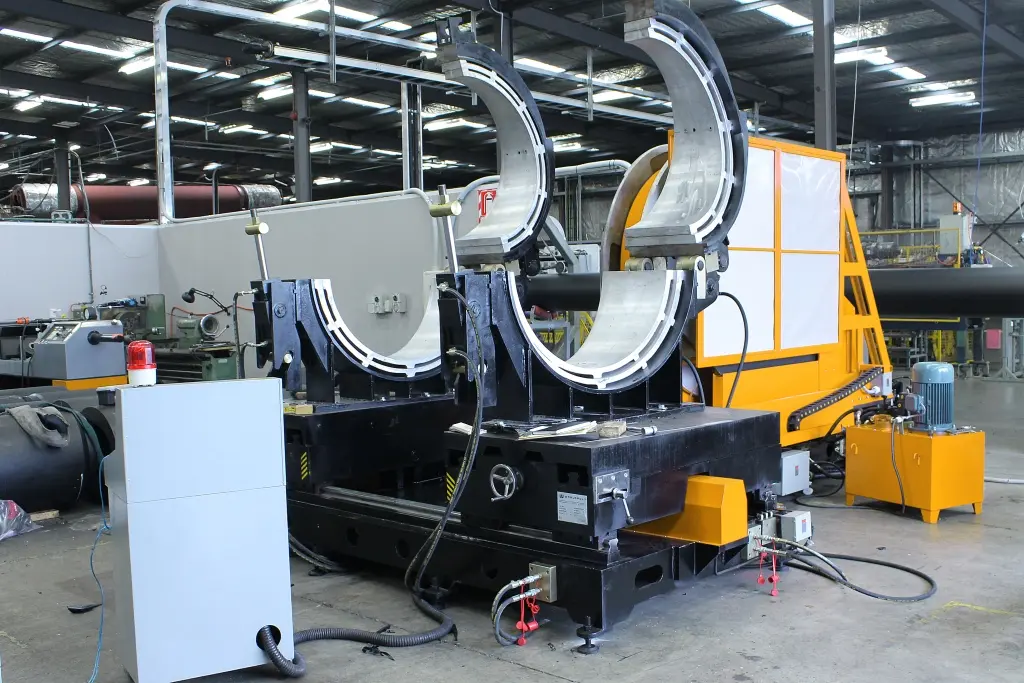

PolyWorkshop1000i

Hydraulically operated workshop machine for the butt-welding of pipes and fittings in PE, PP and other thermoplastic materials. CNC operation provides correct welding parameters, while on-board data logger is ideal for quality control. Pivoting cl

Read More REQUEST A QUOTE

SAFETY

Workshop welding machine, ready to accept clamps for the production of bends, tees, crosses and branch tees from 500 to 1000mm OD. CNC operation, on-board data-logger.

Standard Features

  • Welding range 500 to 1000mm to SDR 7.4
  • CNC touch-screen control of welding operations and integral data logger are standard.
  • Bend clamps allow production of segmented bends in diameters 500, 560, 630, 710, 800, 900 and 1000mm OD.
  • Tee and cross clamps produce 90 degree equal tees and crosses in diameters 500, 560, 630, 710, 800, 900 and 1000mm OD.
  • Optional wye / branch tee clamps produce true-Y, 45 and 60 degree equal Y-branch tees 500, 560, 630, 710, 800, 900 and 1000mm OD.
  • Manual open-close and locking of main bend clamps.
  • German hydraulic seals.
  • 400 volt 3 phase 50 Hz (82.7 kw 130 A). Optional 60 Hz also available.
  • Genuine 12 month international warranty.
  • Total cylinder area: 38.46cm²
  • Please note technical specifications of Worldpoly machines may change without notice

Technical Specifications

General

Welding range 500 to 1000mm to SDR 7.4
CNC touch-screen control of welding operations and integral data logger are standard.
Manual open-close and locking of main bend clamps.
Please note technical specifications of Worldpoly machines may change without notice

Hydraulic

German hydraulic seals.
Total cylinder area: 38.46cm²

Electric

400 volt 3 phase 50 Hz (82.7 kw 130 A). Optional 60 Hz also available.

Options

Bend clamps allow production of segmented bends in diameters 500, 560, 630, 710, 800, 900 and 1000mm OD.
Tee and cross clamps produce 90 degree equal tees and crosses in diameters 500, 560, 630, 710, 800, 900 and 1000mm OD.
Optional wye / branch tee clamps produce true-Y, 45 and 60 degree equal Y-branch tees 500, 560, 630, 710, 800, 900 and 1000mm OD.

Warranty

Genuine 12 month international warranty.
