Worldpoly630 LF

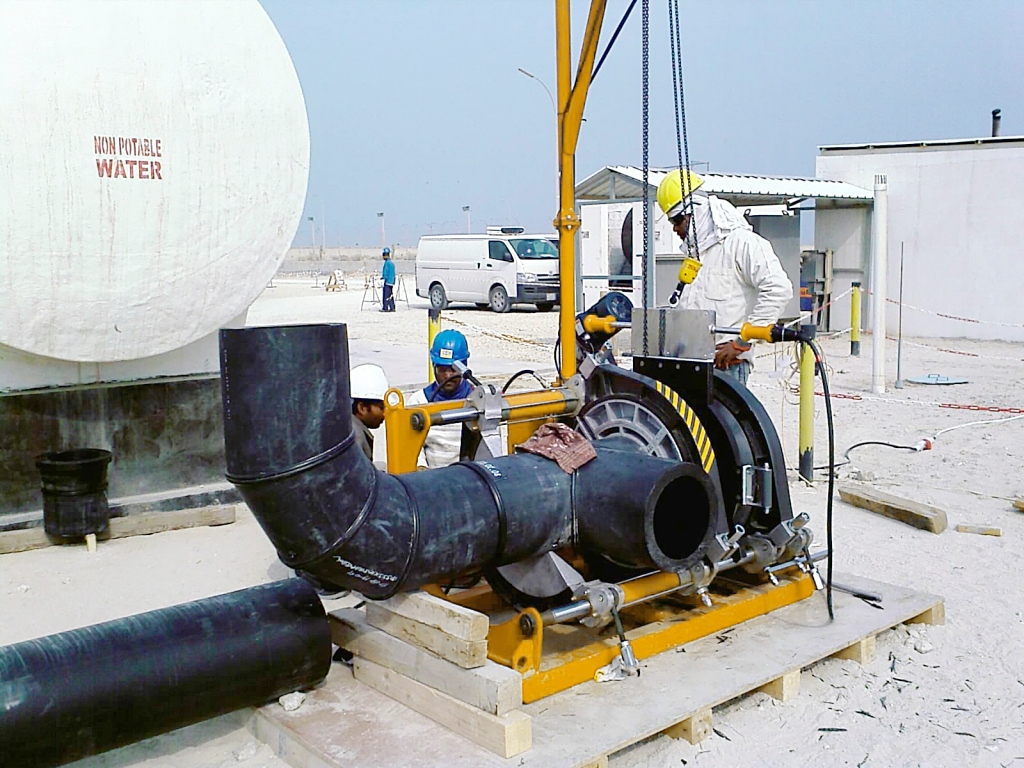

Worldpoly630 hydraulically operated butt welding machine suitable for HDPE and PP pipes and fittings from 315 to 630mm OD / 12" to 24". Available to weld according to ISO/DVS/POP003 SLP & DLP low force. Excellent design and construction provi

Read More REQUEST A QUOTE

SAFETY

Worldpoly630 butt welding machine including hydraulic main frame with clamps 630mm / alt. 24", electric facing tool & heating plate with stand and hydraulic control unit

Standard Features

  • Optional Aluminium or steel stub end device for welding end fittings.
  • Genuine 2 year international warranty.
  • Wired ready to accept Worldpoly or other data logger.
  • Tool box including tools, bolts etc.
  • Optional wheeled trolley available.
  • Optional 250kg crane assembly.
  • 400 volt 50/60 Hz 3 phase (13.5 kw 23 A).
  • Minimum generator required: 400 volt 20 kVA 3 phase. Provide full machine details to generator supplier before purchase.
  • Weight 1,092kg (including crane and stub device)
  • Total cylinder area: 23.06cm2 (2306mm2), maximum pump pressure 120 bar
  • Please note technical specifications of Worldpoly machines may change without notice
  • Welding range 315mm to 630mm: SDR 9 (PN20) to SDR 41 (PN4) according to DVS 2207-1, ISO 21307 and POP003 low-pressure specifications..
  • Complete and ready to weld.
  • German hydraulic seals.
  • Main frame includes 4 light weight pressure-cast alloy main clamps of 630mm diameter.
  • Machine can be supplied with any combination of liner diameters. Clamp options include:
  • Layer clamps: 630x560, 560x500, 500x450,450x400, 400x355, 355x315.
  • 2-piece liners: 630x560, 630x500, 630x450, 630x400, 450x355, 450x315.
  • Narrow clamps: 630x560, 630x500, 630x450,630x400, 630x355, 630x315.
  • Removable cast Aluminum PTFE coated heated plate with electronic temperature control. Heating plate automatically separates from pipe ends after heating.
  • Removable cast Aluminium electric facing tool with current overload protection.
  • Stand for heating plate and facing tool.
  • Electro hydraulic pump with controls, and quick release hoses. Includes countdown timers for heating and cooling phases.

Technical Specifications

Options

Optional Aluminium or steel stub end device for welding end fittings.
Optional wheeled trolley available.
Optional 250kg crane assembly.
Machine can be supplied with any combination of liner diameters. Clamp options include:
Layer clamps: 630x560, 560x500, 500x450,450x400, 400x355, 355x315.
2-piece liners: 630x560, 630x500, 630x450, 630x400, 450x355, 450x315.
Narrow clamps: 630x560, 630x500, 630x450,630x400, 630x355, 630x315.

Warranty

Genuine 2 year international warranty.

Electric

Wired ready to accept Worldpoly or other data logger.
400 volt 50/60 Hz 3 phase (13.5 kw 23 A).
Minimum generator required: 400 volt 20 kVA 3 phase. Provide full machine details to generator supplier before purchase.

General

Tool box including tools, bolts etc.
Weight 1,092kg (including crane and stub device)
Please note technical specifications of Worldpoly machines may change without notice
Welding range 315mm to 630mm: SDR 9 (PN20) to SDR 41 (PN4) according to DVS 2207-1, ISO 21307 and POP003 low-pressure specifications..
Complete and ready to weld.
Main frame includes 4 light weight pressure-cast alloy main clamps of 630mm diameter.
Removable cast Aluminum PTFE coated heated plate with electronic temperature control. Heating plate automatically separates from pipe ends after heating.
Removable cast Aluminium electric facing tool with current overload protection.
Stand for heating plate and facing tool.
Electro hydraulic pump with controls, and quick release hoses. Includes countdown timers for heating and cooling phases.

Hydraulic

Total cylinder area: 23.06cm2 (2306mm2), maximum pump pressure 120 bar
German hydraulic seals.
