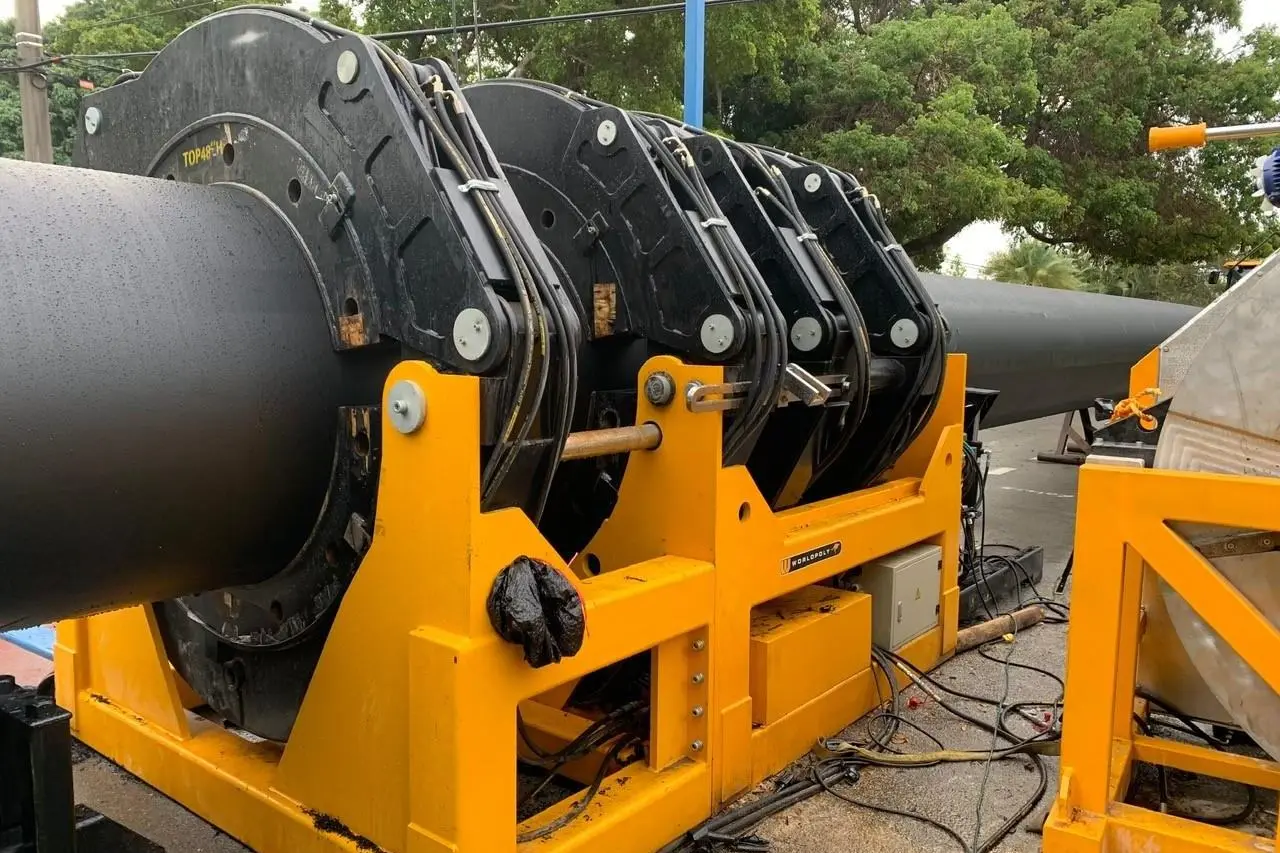

Worldpoly63 HF

Worldpoly63 HF hydraulically operated butt-welding machine suitable for HDPE pipes and fittings from 36" to 63" OD. Simple operation is CNC via the provided tablet, requiring only entry of the welding standard, pipe OD and SDR. Pressure, time and t

Read More REQUEST A QUOTE

SAFETY

Worldpoly63 Hydra HF butt welding machine including hydraulic main frame with clamps 63", hydraulic open / close / locking of main clamps, CNC tablet control including data logging, electric facing tool & heating plate with stand and on-board hydraulics. Welding According to ASTM & ISO high force requirements.

Technical Specifications

General

Welding range 36" to 63" IPS to DR 9 with optional clamp inserts
Genuine 2 year international warranty
Tablet controlled CNC operation. Enter welding standard, pipe OD and SDR, then time, temperature and pressure are automatically controlled
20,000+ weld data logging
Heating plate is automatically separated from the pipe at the end of the heating cycle
Electrohydraulic pump with controls and accumulator are mounted on the main frame. Includes countdown timers for heating and cooling phases
Removable steel electric facing tool with current overload protection
Aluminium PTFE coated heating plate with electronic temperature control. Heating plate automatically releases from pipe ends after heating.
Stand for heating plate and facing tool
Tool box including tools, bolts etc.
Please note technical specifications of Worldpoly machines may change without notice

Hydraulic

Total cylinder section: optional 68.7 cm² or 95.4 cm²

Electric

400 volt 50/60 Hz 3 phase (66 kw 107 A) alt 440 volt 3 phase 60 hz
Minimum generator 400 volt 80 kVA. Check with your generator supplier for suitability

Options

Optional two-piece clamp inserts: 63", 54", 48", 42", 40" & 36" IPS, and 60", 54", 48"42" & 36" DIPS
