Worldpoly450 LF

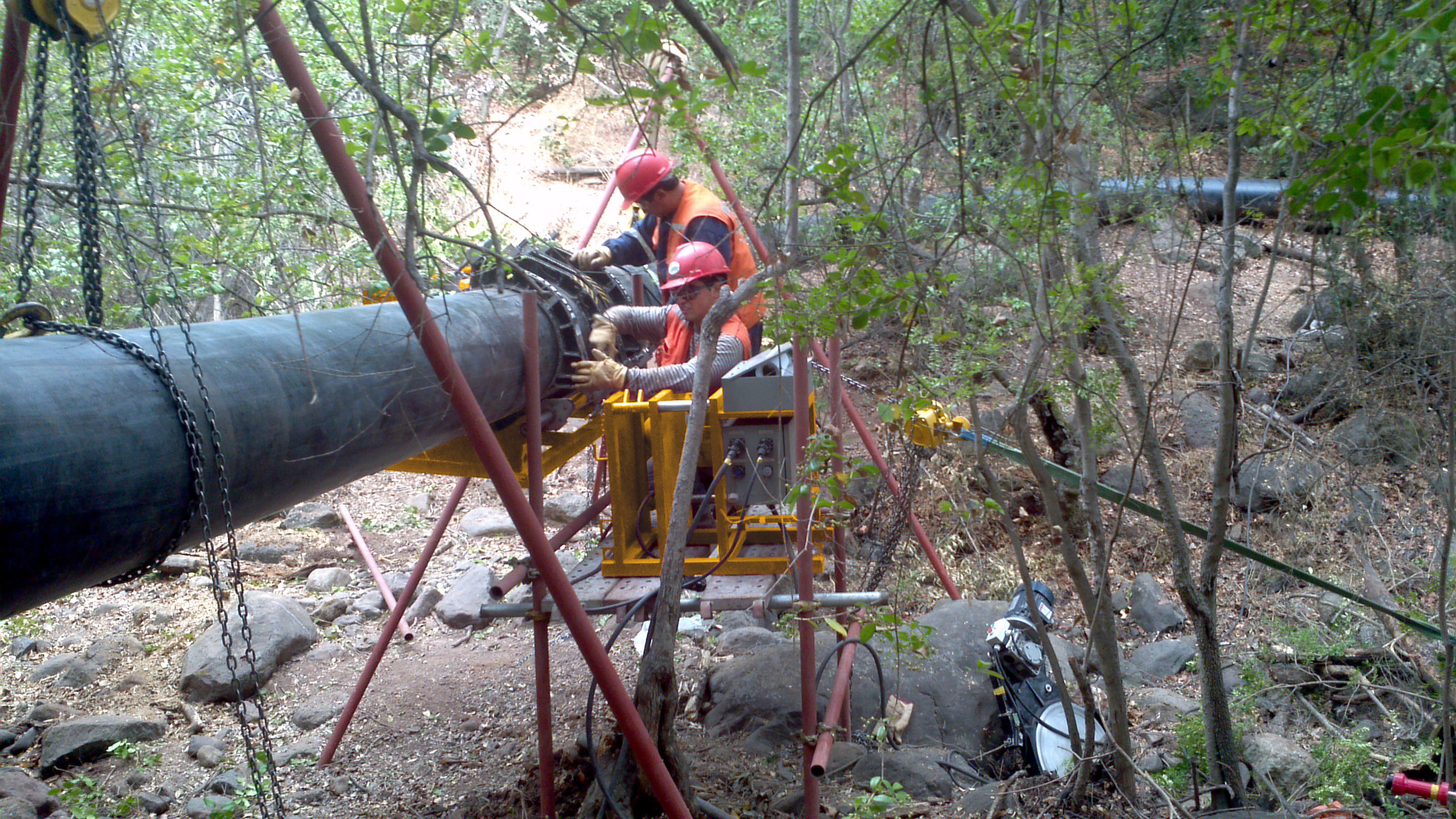

Worldpoly450 hydraulically operated butt-welding machine suitable for PE and PP pipes and fittings from 200 to 450mm OD (modification available to weld to 160mm SDR 9 & 11 only). Excellent design and construction provides a premium machine for

Read More REQUEST A QUOTE

SAFETY

Worldpoly450 butt welding machine including hydraulic main frame with clamps 450mm, electric facing tool & heating plate with stand and hydraulic control unit

Standard Features

  • - PTFE coated heating plate with electronic temperature control (heating plate automatically separates from pipe ends after heating)
  • Optional stub end device for welding end fittings (available in aluminium or steel)
  • Optional wheeled trolley available
  • 400V 50/60 Hz 3 phase (9.5 kw 17 A) also available as 220 volt 50/60 hz (9.8 kw 22.9 A)
  • Minimum generator required: 400 volt 3 phase 14 KVA (or as 230 volt 1 phase - 13 KVA). Provide full machine details to generator supplier before purchase.
  • Weight 776kg (including crane and stub device)
  • Total cylinder area: 22.36cm2, maximum pump pressure 120 bar
  • Please note technical specifications of Worldpoly machines may change without notice
  • Australia only - This machine is supplied tested & tagged with a 32amp plug
  • Welding range 200 to 450mm: SDR 9 (PN20) to SDR 41 (PN4) according to DVS 2207-1, ISO 21307 and POP003 low-pressure specifications.
  • Complete and ready to weld - Genuine 2 year warranty on parts
  • Included as standard (unless otherwise specified):
  • - Main frame, including 4 light weight pressure-cast alloy main clamps of 450mm diameter
  • - Removable cast Aluminium electric facing tool with current overload protection
  • - Electrohydraulic pump with controls, and quick release hoses. Includes countdown timers for heating and cooling phases
  • - Stand for heating plate and facing tool
  • - Tool box including tools, bolts, selected spare parts, etc
  • - German hydraulic seals
  • - Wired ready to accept Worldpoly or other data logger
  • Clamp options include (machine can be supplied with any combination of liner diameters):
  • - Layer clamps: 450x400, 400x355, 355x315, 315x280, 280x250, 250x225, 225x200mm
  • - 2-piece liners: 450x400, 450x355, 450x315, 450x280, 315x250, 315x225, 315x200mm
  • - Narrow clamps: 450x400, 450x355, 450x315, 450x280, 450x250, 450x225, 450x200

Technical Specifications

General

- PTFE coated heating plate with electronic temperature control (heating plate automatically separates from pipe ends after heating)
Weight 776kg (including crane and stub device)
Welding range 200 to 450mm: SDR 9 (PN20) to SDR 41 (PN4) according to DVS 2207-1, ISO 21307 and POP003 low-pressure specifications.
Complete and ready to weld - Genuine 2 year warranty on parts
Included as standard (unless otherwise specified):
- Main frame, including 4 light weight pressure-cast alloy main clamps of 450mm diameter
- Removable cast Aluminium electric facing tool with current overload protection
- Electrohydraulic pump with controls, and quick release hoses. Includes countdown timers for heating and cooling phases
- Stand for heating plate and facing tool
- Tool box including tools, bolts, selected spare parts, etc
- German hydraulic seals

Options

Optional stub end device for welding end fittings (available in aluminium or steel)
Optional wheeled trolley available
Clamp options include (machine can be supplied with any combination of liner diameters):
- Layer clamps: 450x400, 400x355, 355x315, 315x280, 280x250, 250x225, 225x200mm
- 2-piece liners: 450x400, 450x355, 450x315, 450x280, 315x250, 315x225, 315x200mm
- Narrow clamps: 450x400, 450x355, 450x315, 450x280, 450x250, 450x225, 450x200

Electric

400V 50/60 Hz 3 phase (9.5 kw 17 A) also available as 220 volt 50/60 hz (9.8 kw 22.9 A)
Minimum generator required: 400 volt 3 phase 14 KVA (or as 230 volt 1 phase - 13 KVA). Provide full machine details to generator supplier before purchase.
Australia only - This machine is supplied tested & tagged with a 32amp plug
- Wired ready to accept Worldpoly or other data logger

Hydraulic

Total cylinder area: 22.36cm2, maximum pump pressure 120 bar

Warranty

Please note technical specifications of Worldpoly machines may change without notice
