Worldpoly315 HF

High and low-force welding. Worldpoly 315 / 12" High force is a hydraulically operated butt-welding machine suitable for PE and PP pipes and fittings from 90 to 315mm OD (alternatively 3" to 12" IPS), using both high and low force welding methods.

Read More REQUEST A QUOTE

SAFETY

Worldpoly315 / 12" High / Low Force welding machine. Includes hydraulic main frame with electric facing tool & heating plate, stand and hydraulic control unit.

Standard Features

  • Welding range 90 to 315mm SDR 9 (PN20) to SDR 17. 90 to 160mm SDR 9 and 11 only.
  • Welds both high and low pressure according to ISO, ASTM, ANZ POP003, and DVS low pressure.
  • Complete and ready to weld - Genuine 2 year warranty on parts
  • Included as standard (unless otherwise specified):
  • - Main frame, including 4 light weight pressure-cast alloy main clamps of 160mm diameter
  • - Removable cast Aluminium electric facing tool with current overload protection
  • - Electrohydraulic pump with controls, and quick release hoses. Includes countdown timers for heating and cooling phases
  • - PTFE coated heating plate with electronic temperature control (heating plate automatically separates from pipe ends after heating)
  • - Stand for heating plate and facing tool
  • - Tool box including tools, bolts, selected spare parts, etc
  • - German hydraulic seals
  • - Wired ready to accept Worldpoly or other data logger
  • Clamp options include (machine can be supplied with any combination of liner diameters):
  • - 2-piece liners: 315x280, 315x250, 315x225, 315x200, 315x180, 315x160, 160x140, 160x125, 160x110, 160x90.
  • - Narrow clamps: 315x280, 315x250, 315x225, 315x200, 315x180, 315x160, 315x140, 315x125, 315x110, 315x90.
  • Optional stub end device for welding end fittings (available in aluminium or steel)

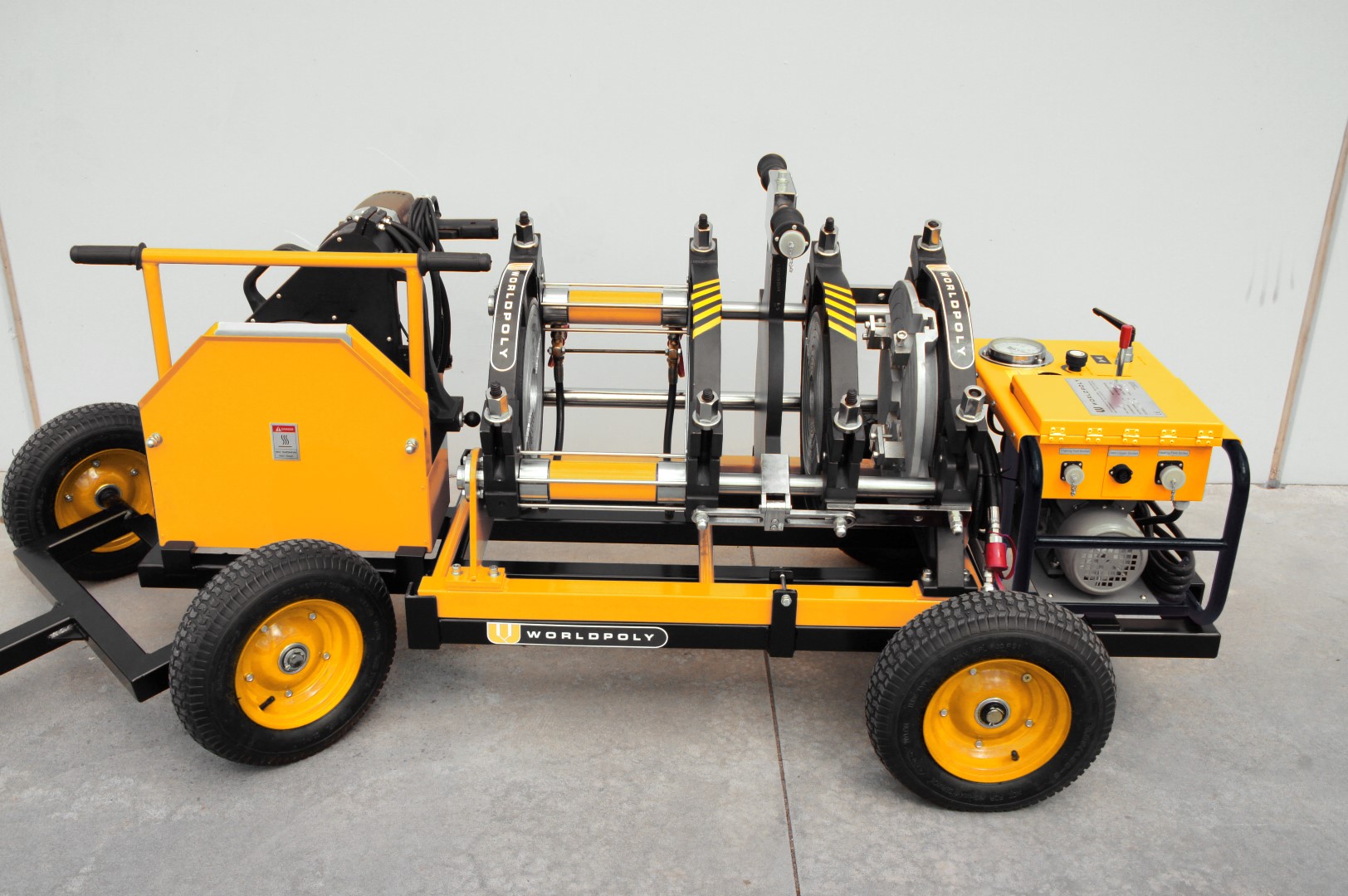

  • Optional wheeled trolley available
  • 230 volt 50/60 Hz 1 phase (6.2 kw 19.8 A)
  • Requires generator minimum 230 volt 9 KVA - provide full machine details to generator supplier before purchase
  • Total cylinder section 20 cm2, maximum pump pressure 120 bar
  • Net weight 355 kg
  • Please note technical specifications of Worldpoly machines may change without notice
  • Australia only - This machine is supplied tested & tagged with 2 x 20 amp plugs

Technical Specifications

General

Welding range 90 to 315mm SDR 9 (PN20) to SDR 17. 90 to 160mm SDR 9 and 11 only.
Welds both high and low pressure according to ISO, ASTM, ANZ POP003, and DVS low pressure.
Included as standard (unless otherwise specified):
- Main frame, including 4 light weight pressure-cast alloy main clamps of 160mm diameter
- Removable cast Aluminium electric facing tool with current overload protection
- Electrohydraulic pump with controls, and quick release hoses. Includes countdown timers for heating and cooling phases
- PTFE coated heating plate with electronic temperature control (heating plate automatically separates from pipe ends after heating)
- Stand for heating plate and facing tool
- Tool box including tools, bolts, selected spare parts, etc
- Wired ready to accept Worldpoly or other data logger
Net weight 355 kg
Please note technical specifications of Worldpoly machines may change without notice

Warranty

Complete and ready to weld - Genuine 2 year warranty on parts

Hydraulic

- German hydraulic seals
Total cylinder section 20 cm2, maximum pump pressure 120 bar

Options

Clamp options include (machine can be supplied with any combination of liner diameters):
- 2-piece liners: 315x280, 315x250, 315x225, 315x200, 315x180, 315x160, 160x140, 160x125, 160x110, 160x90.
- Narrow clamps: 315x280, 315x250, 315x225, 315x200, 315x180, 315x160, 315x140, 315x125, 315x110, 315x90.
Optional stub end device for welding end fittings (available in aluminium or steel)
Optional wheeled trolley available

Electric

230 volt 50/60 Hz 1 phase (6.2 kw 19.8 A)
Requires generator minimum 230 volt 9 KVA - provide full machine details to generator supplier before purchase
Australia only - This machine is supplied tested & tagged with 2 x 20 amp plugs
