Worldpoly315 CNC LF

Worldpoly315 CNC hydraulically operated butt-welding machine suitable for PE pipes and fittings from 90 to 315mm OD. Excellent design and construction provides a premium machine for welding both on the worksite and in the factory. Integrated CNC co

Read More REQUEST A QUOTE

SAFETY

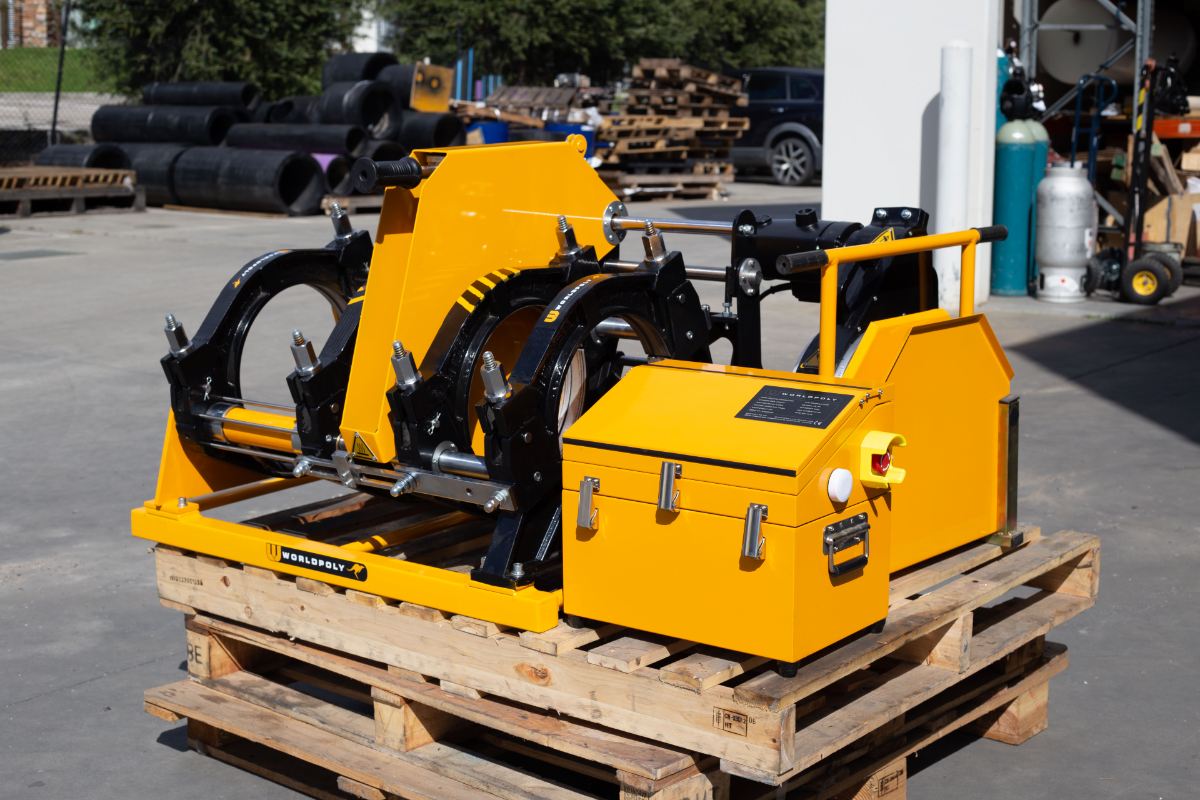

Worldpoly315 CNC butt welding machine including CNC controlled hydraulic unit, hydraulic main frame with clamps 315mm, electric facing tool & heating plate with stand.

Standard Features

  • Welding range 90 to 315mm SDR 9 (PN20) to SDR 41 (PN4) according to DVS 2207-1 and ISO 21307 low-pressure specifications.
  • Complete and ready to weld - Genuine 2 year warranty on parts
  • CNC controlled temperature, time and pressure functions.
  • Included as standard (unless otherwise specified):
  • - Main frame, including 4 light weight pressure-cast alloy main clamps of 315mm diameter
  • - Stand for facing tool
  • - Tool box including tools, bolts, selected spare parts, etc
  • - German hydraulic seals
  • Integrated data logger with USB output.
  • Clamp options include (machine can be supplied with any combination of liner diameters):
  • - Layer clamps: 315x280, 280x250, 250x225, 225x200, 200x180, 180x160, 160x140, 140x125, 125x110, 110x90.
  • - 2-piece liners: 315x280, 315x250, 315x225, 315x200, 315x180, 315x160, 160x140, 160x125, 160x110, 160x90.
  • - Narrow clamps: 315x280, 315x250, 315x225, 315x200, 315x180, 315x160, 315x140, 315x125, 315x110, 315x90.
  • 230 volt 50/60 Hz 1 phase, 5.35 kw, 27 A.
  • Requires generator minimum: 230 volt - 6 KVA. Provide full machine details to generator supplier before purchase.
  • Total cylinder area: 20cm2 / 2000mm2, maximum pump pressure 60 bar
  • Net weight 225 kg
  • Please note technical specifications of Worldpoly machines may change without notice
  • Australia only - This machine is supplied with 2x 15 amp plugs requiring two power supply sockets

Technical Specifications

General

Welding range 90 to 315mm SDR 9 (PN20) to SDR 41 (PN4) according to DVS 2207-1 and ISO 21307 low-pressure specifications.
Complete and ready to weld - Genuine 2 year warranty on parts
CNC controlled temperature, time and pressure functions.
Included as standard (unless otherwise specified):
- Main frame, including 4 light weight pressure-cast alloy main clamps of 315mm diameter
- Stand for facing tool
- Tool box including tools, bolts, selected spare parts, etc
Integrated data logger with USB output.
Net weight 225 kg
Please note technical specifications of Worldpoly machines may change without notice

Hydraulic

- German hydraulic seals
Total cylinder area: 20cm2 / 2000mm2, maximum pump pressure 60 bar

Options

Clamp options include (machine can be supplied with any combination of liner diameters):
- Layer clamps: 315x280, 280x250, 250x225, 225x200, 200x180, 180x160, 160x140, 140x125, 125x110, 110x90.
- 2-piece liners: 315x280, 315x250, 315x225, 315x200, 315x180, 315x160, 160x140, 160x125, 160x110, 160x90.
- Narrow clamps: 315x280, 315x250, 315x225, 315x200, 315x180, 315x160, 315x140, 315x125, 315x110, 315x90.

Electric

230 volt 50/60 Hz 1 phase, 5.35 kw, 27 A.
Requires generator minimum: 230 volt - 6 KVA. Provide full machine details to generator supplier before purchase.
Australia only - This machine is supplied with 2x 15 amp plugs requiring two power supply sockets
