Worldpoly2800 Hydra LF

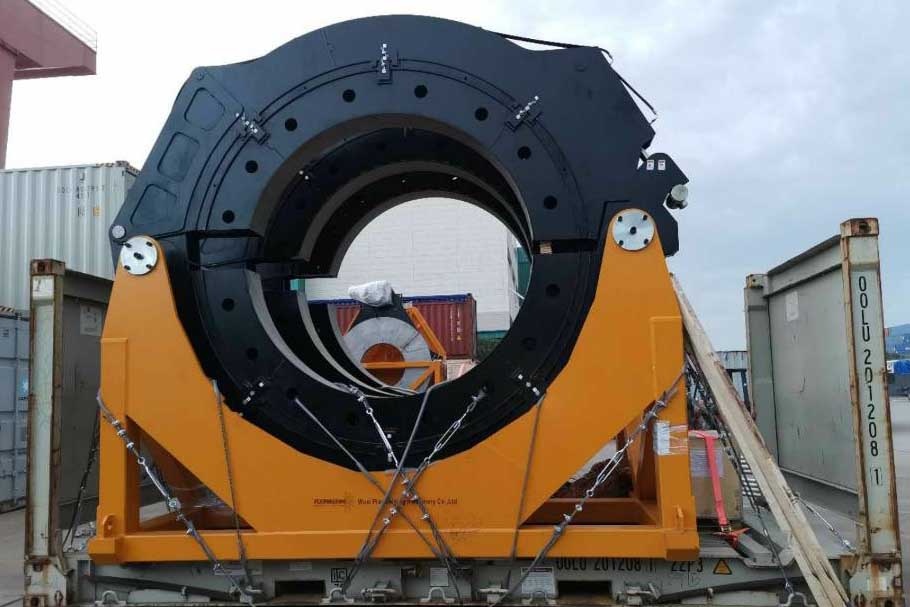

Worldpoly2800 Hydra LF hydraulically operated butt-welding machine suitable for PE and PP pipes and fittings to 2800mm OD. Includes hydraulic open/close/locking clamps to weld pipes 1600mm to 2800mm, and a steel stub device. Tablet control includes



Worldpoly machines operate with far less downtime than you've become used to.

Technical Specifications


Welding range to 2800mm to 1800mm SDR26 to SDR41
Hydraulic open / close / locking of main clamps
Tablet operated with CNC control of temperature, time and pressure functions. Operator can move around the machine during welding.
Research, design and development by Worldpoly Australia
Commissioning, training and warranty by Worldpoly Australia as per agreed term and conditions
Includes 20,000+ weld data logger.
Removable cast Aluminium electric facing tool with current overload protection.
Removable cast Aluminium PTFE coated heating plate with electronic temperature control.
Stand for heating plate and facing tool.
On-board electrohydraulic pump with controls, accumulator and quick release hoses. Includes countdown timers for heating and cooling phases.
Please note technical specifications of Worldpoly machines may change without notice. Please confirm at time of order.


480 volt 60 Hz 3 phase. 98 kW / 205 A (Changes may apply on final product)


Genuine 2 year international warranty, backed by Australian and International Law
