Worldpoly250 CNC LF

Worldpoly250 CNC hydraulically operated butt-welding machine, suitable for PE and PP pipes and fittings from 90 to 250mm OD at ISO & POP003 Low Force specifications. Excellent design and construction provides a premium machine for welding both o

Read More REQUEST A QUOTE

SAFETY

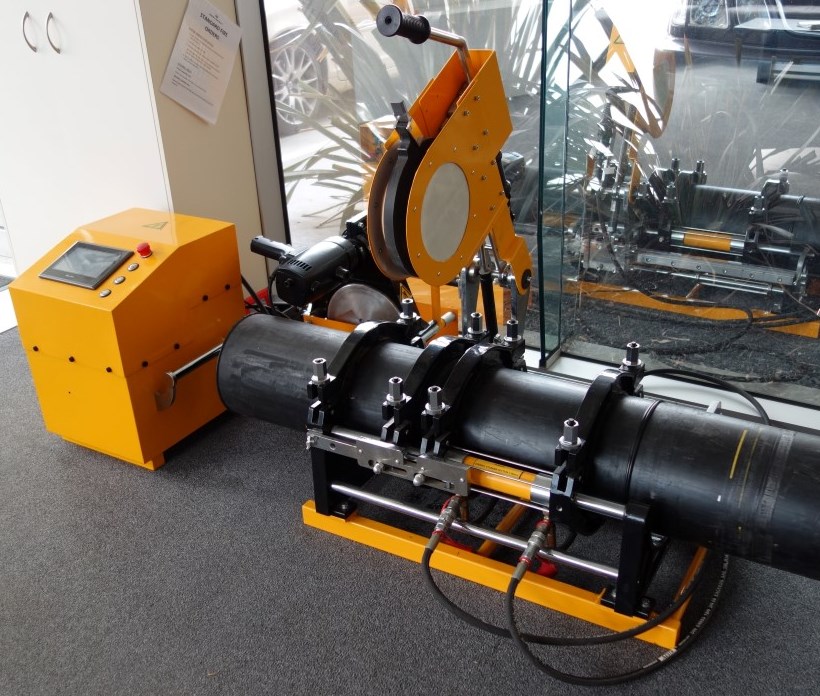

Worldpoly250 CNC butt welding machine including CNC controlled hydraulic unit, hydraulic main frame with clamps 250mm, electric facing tool & heating plate with stand.

Standard Features

  • Welding range 90 to 250mm SDR 9 (PN20) to SDR 41 (PN4) according to DVS 2207-1, ISO 21307 and POP003 low-pressure specifications.
  • Complete and ready to weld.

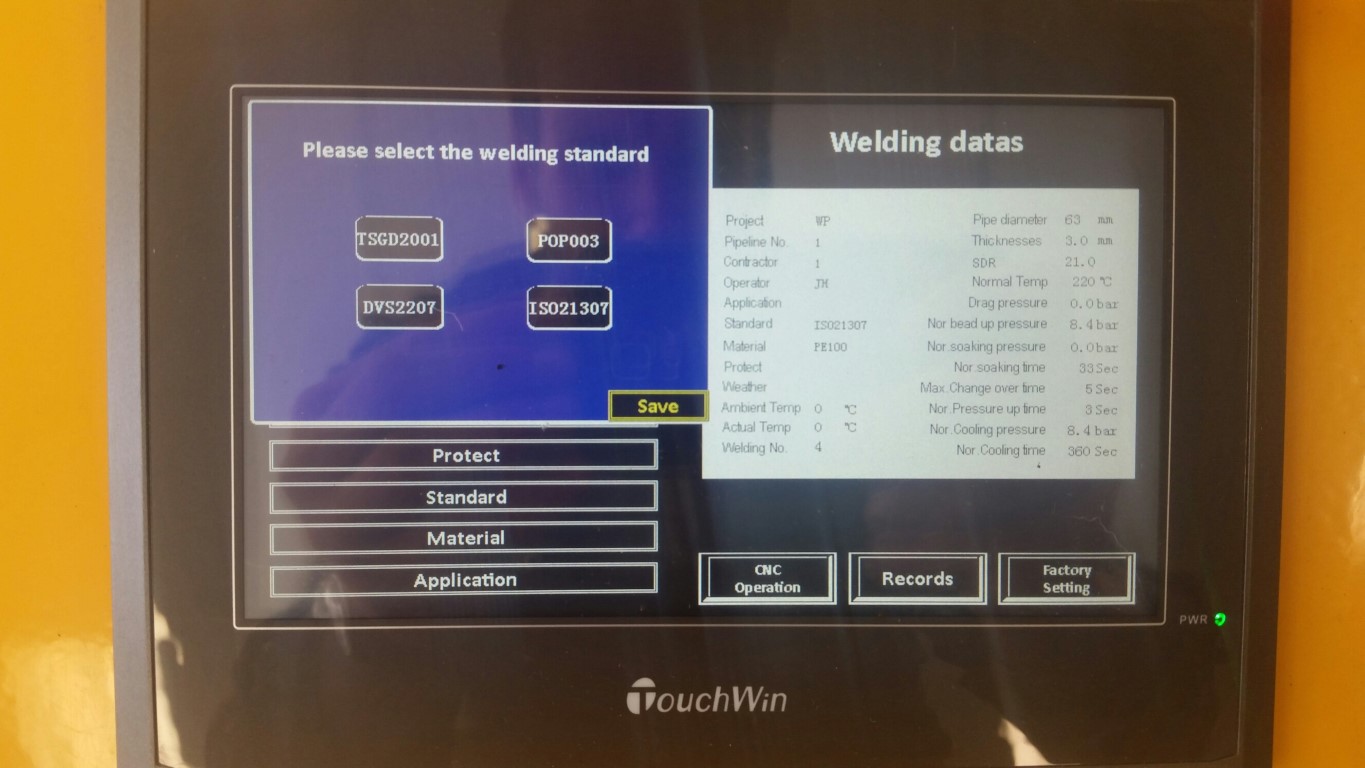

  • CNC controlled temperature, time and pressure functions.
  • German hydraulic seals.
  • Main frame includes 4 light weight pressure-cast alloy main clamps of 250mm diameter.
  • Machine can be supplied with any combination of liner diameters. Clamp options include:
  • Layer clamps: 250x225, 225x200, 200x180, 180x160, 160x140, 140x125, 125x110, 110x90.
  • CNC controlled electro hydraulic pump with quick release hoses.
  • CNC controlled jump-up cast Aluminum PTFE coated heating plate with electronic temperature control. Heating plate automatically separates from pipe ends after heating.
  • Electrically operated facing tool for correct preparation of pipe ends.
  • Stand for facing tool.
  • Tool box including tools, bolts etc.
  • Optional Aluminium stub end device for welding end fittings.
  • Genuine 1 year international warranty.
  • Optional wheeled trolley available.
  • Australia only - This machine is supplied tested & tagged with a 20amp plug
  • Please note technical specifications of Worldpoly machines may change without notice

Technical Specifications

General

Welding range 90 to 250mm SDR 9 (PN20) to SDR 41 (PN4) according to DVS 2207-1, ISO 21307 and POP003 low-pressure specifications.
Complete and ready to weld.
CNC controlled temperature, time and pressure functions.
Main frame includes 4 light weight pressure-cast alloy main clamps of 250mm diameter.
CNC controlled electro hydraulic pump with quick release hoses.
CNC controlled jump-up cast Aluminum PTFE coated heating plate with electronic temperature control. Heating plate automatically separates from pipe ends after heating.
Electrically operated facing tool for correct preparation of pipe ends.
Stand for facing tool.
Tool box including tools, bolts etc.
Genuine 1 year international warranty.
Australia only - This machine is supplied tested & tagged with a 20amp plug
Please note technical specifications of Worldpoly machines may change without notice

Hydraulics

German hydraulic seals.

Options

Machine can be supplied with any combination of liner diameters. Clamp options include:
Layer clamps: 250x225, 225x200, 200x180, 180x160, 160x140, 140x125, 125x110, 110x90.
Optional Aluminium stub end device for welding end fittings.
Optional wheeled trolley available.
