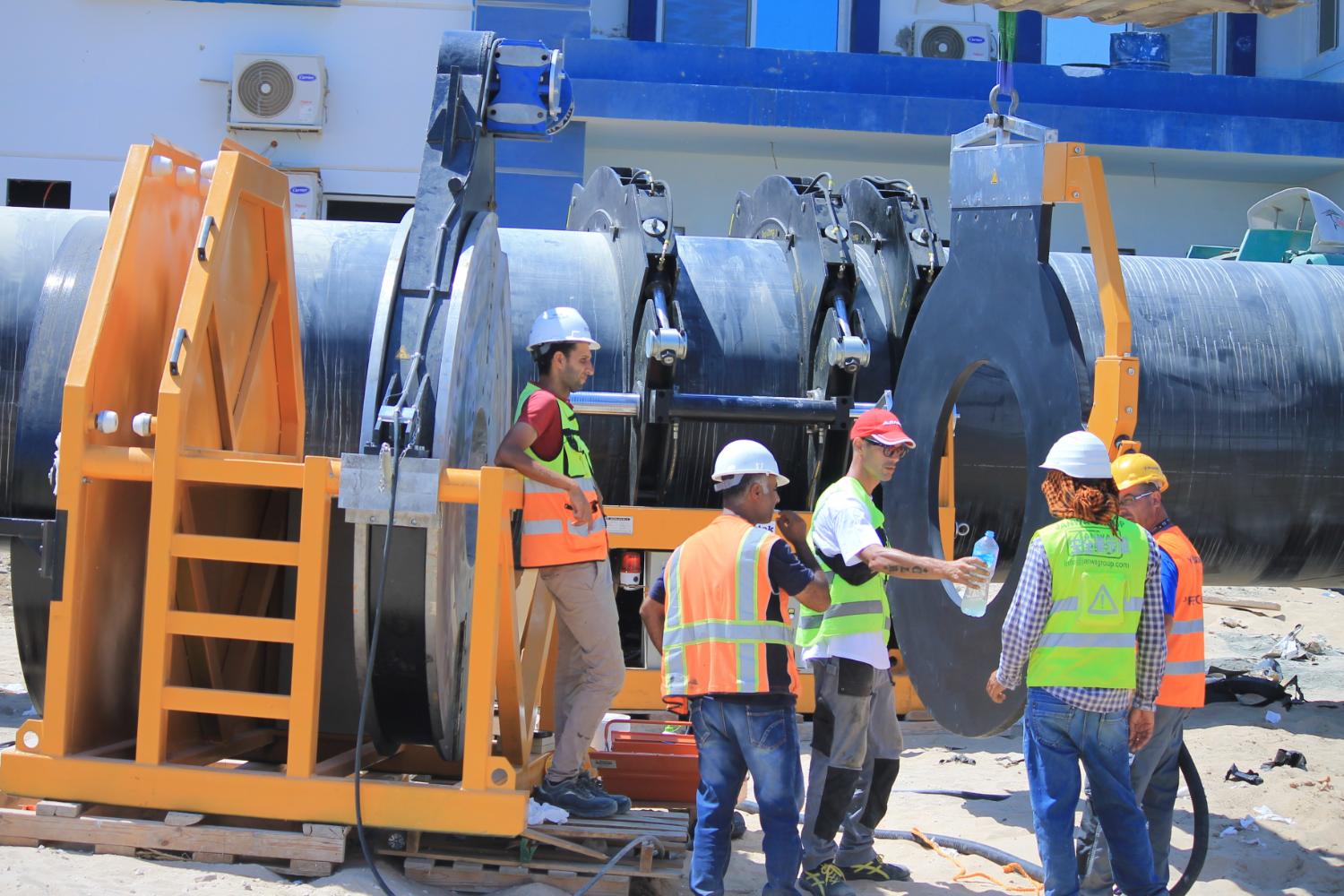

Worldpoly2000 Hydra LF

Worldpoly2000 Hydra LF hydraulically operated butt-welding machine suitable for PE and PP pipes and fittings from 1400mm to 2000mm OD. The standard machine welds at ISO 21307 Low Pressure, DVS 2207 and ANZ POP003 SLP, and has pressure, time and tem

Read More REQUEST A QUOTE

SAFETY

Worldpoly2000 Hydra LF CNC controlled butt welding machine, including hydraulic main frame 2000mm, hydraulic open/close/locking of main clamps, 20,000+ data logging, electric facing tool & PTFE coated heating plate with stand.

Standard Features

  • Genuine 2 year international warranty.
  • Welding range 2000mm to 1400mm, alternatively 80" IPS (2032mm OD) to 54" (1371.6 mm OD), SDR 33 to SDR 17
  • Hydraulic open / close / locking of main clamps
  • CNC welding control of temperature, time and pressure
  • Mobile tablet control
  • Removable cast Aluminium electric facing tool with current overload protection.
  • Removable cast Aluminium PTFE coated heating plate with electronic temperature control.
  • Stand for heating plate and facing tool.
  • On-board electrohydraulic pump with controls, accumulator and quick release hoses. Includes countdown timers for heating and cooling phases.
  • 400 volt 50/60 Hz 3 phase, 84.5 KW 138 Amps. Other voltages on request.
  • Cylinder section 107.54 cm2, 10,754 mm2.
  • Please note technical specifications of Worldpoly machines may change without notice

Technical Specifications

Warranty

Genuine 2 year international warranty.

General

Welding range 2000mm to 1400mm, alternatively 80" IPS (2032mm OD) to 54" (1371.6 mm OD), SDR 33 to SDR 17
Hydraulic open / close / locking of main clamps
CNC welding control of temperature, time and pressure
Mobile tablet control
Removable cast Aluminium electric facing tool with current overload protection.
Removable cast Aluminium PTFE coated heating plate with electronic temperature control.
Stand for heating plate and facing tool.
On-board electrohydraulic pump with controls, accumulator and quick release hoses. Includes countdown timers for heating and cooling phases.
Please note technical specifications of Worldpoly machines may change without notice

Electric

400 volt 50/60 Hz 3 phase, 84.5 KW 138 Amps. Other voltages on request.

Hydraulic

Cylinder section 107.54 cm2, 10,754 mm2.
