Worldpoly1600 Hydra LF

Worldpoly1600 CNC controlled hydraulically operated butt-welding machine, suitable for PE and PP pipes and fittings from 900 to 1600mm OD. Simple operation using CNC control through mobile tablet, and extremely strong construction exhibits our 60 y

Read More REQUEST A QUOTE

SAFETY

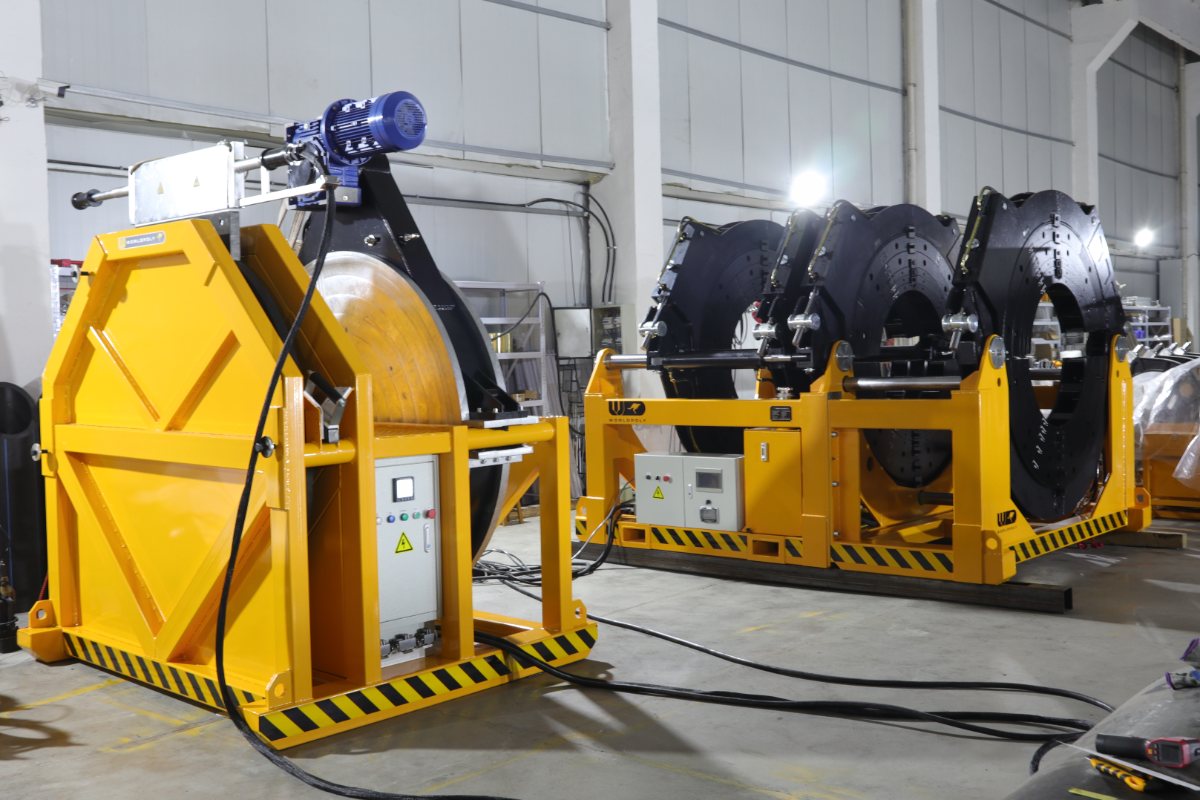

Worldpoly1600 butt welding machine including hydraulic main frame with main clamps 1600mm clamps, electric facing tool & heating plate with stand and on-board hydraulics. CNC tablet operated with 20,000+ weld data logging.

Standard Features

  • Standard welding range 1600mm SDR 17 to 900mm SDR 11 with optional clamp inserts
  • Genuine 2 year international warranty.
  • Layer clamps: 1600x1400, 1400x1200, 1200x1000, 1000 x 900
  • Heating plate is automatically separated from the pipe at the end of the heating cycle.
  • Electrohydraulic pump with controls and accumulator are mounted on the main frame. Includes countdown timers for heating and cooling phases.
  • Removable steel electric facing tool with current overload protection.
  • Aluminium PTFE coated heating plate with electronic temperature control. Heating plate automatically releases from pipe ends after heating.
  • Stand for heating plate and facing tool.
  • Tool box including tools, bolts etc.
  • 400 volt 50/60 Hz 3 phase (66 kw 107 A) alt 440 volt 3 phase 60 hz
  • Minimum generator 400 volt 80 kVA. Check with your generator supplier for suitability.
  • Total cylinder section: optional 68.7 cm2 or 95.4 cm2
  • Please note technical specifications of Worldpoly machines may change without notice

Technical Specifications

General

Standard welding range 1600mm SDR 17 to 900mm SDR 11 with optional clamp inserts
Heating plate is automatically separated from the pipe at the end of the heating cycle.
Electrohydraulic pump with controls and accumulator are mounted on the main frame. Includes countdown timers for heating and cooling phases.
Removable steel electric facing tool with current overload protection.
Aluminium PTFE coated heating plate with electronic temperature control. Heating plate automatically releases from pipe ends after heating.
Stand for heating plate and facing tool.
Tool box including tools, bolts etc.
Please note technical specifications of Worldpoly machines may change without notice

Warranty

Genuine 2 year international warranty.

Options

Layer clamps: 1600x1400, 1400x1200, 1200x1000, 1000 x 900

Electric

400 volt 50/60 Hz 3 phase (66 kw 107 A) alt 440 volt 3 phase 60 hz
Minimum generator 400 volt 80 kVA. Check with your generator supplier for suitability.

Hydraulic

Total cylinder section: optional 68.7 cm2 or 95.4 cm2
