Worldpoly160 LF

Worldpoly160 LF hydraulically operated butt-welding machine suitable for PE and PP pipes and fittings from 50 to 160mm OD using low force welding methods. Excellent Australian Engineered design and construction provides a premium machine for weldin

Read More REQUEST A QUOTE

SAFETY

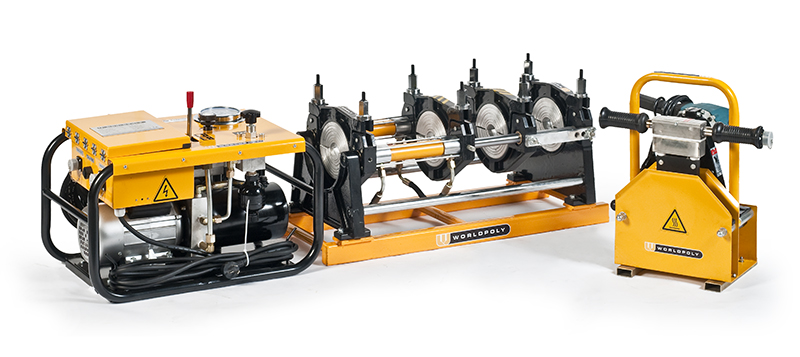

Worldpoly160 butt welding machine including hydraulic main frame with clamps 160mm, electric facing tool & heating plate with stand and hydraulic control unit.

Standard Features

  • Welding range 50 to 160mm: SDR 9 (PN20) to SDR 41 (PN4) according to DVS 2207-1, ISO 21307 and POP003 low-pressure specifications
  • - German hydraulic seals
  • - Wired ready to accept Worldpoly or other data logger
  • Clamp options include (machine can be supplied with any combination of liner diameters):
  • - Layer clamps: 160x140, 140x125, 125x110, 110x90, 90x75, 75x63 & 63x50mm
  • - 2-piece liners: 160x140, 160x125, 160x110, 160x90, 160x75, 160x63 & 160x50mm
  • - Narrow clamps: 160x140, 160x125, 160x110, 160x90, 160x75, 160x63 & 160x50mm
  • Optional stub end device for welding end fittings (available in aluminium or steel)
  • Optional wheeled trolley available
  • 230 volt 50/60 Hz 1 phase (2.85 kw 15.6A )
  • Requires generator minimum 230 volt 3.3 KVA - provide full machine details to generator supplier before purchase
  • Total cylinder section 6.26 cm2, maximum pump pressure 60 bar
  • Net weight 107 kg
  • Please note technical specifications of Worldpoly machines may change without notice
  • Australia only - This machine is supplied tested & tagged with a 15amp plug
  • Complete and ready to weld - Genuine 2 year warranty on parts
  • Included as standard (unless otherwise specified):
  • - Main frame, including 4 light weight pressure-cast alloy main clamps of 160mm diameter
  • - Removable cast Aluminium electric facing tool with current overload protection
  • - Electrohydraulic pump with controls, and quick release hoses. Includes countdown timers for heating and cooling phases
  • - PTFE coated heating plate with electronic temperature control (heating plate automatically separates from pipe ends after heating)
  • - Stand for heating plate and facing tool
  • - Tool box including tools, bolts, selected spare parts, etc

Technical Specifications

General

Welding range 50 to 160mm: SDR 9 (PN20) to SDR 41 (PN4) according to DVS 2207-1, ISO 21307 and POP003 low-pressure specifications
- Wired ready to accept Worldpoly or other data logger
Net weight 107 kg
Complete and ready to weld - Genuine 2 year warranty on parts
Included as standard (unless otherwise specified):
- Main frame, including 4 light weight pressure-cast alloy main clamps of 160mm diameter
- Removable cast Aluminium electric facing tool with current overload protection
- Electrohydraulic pump with controls, and quick release hoses. Includes countdown timers for heating and cooling phases
- PTFE coated heating plate with electronic temperature control (heating plate automatically separates from pipe ends after heating)
- Stand for heating plate and facing tool
- Tool box including tools, bolts, selected spare parts, etc

Hydraulic

- German hydraulic seals
Total cylinder section 6.26 cm2, maximum pump pressure 60 bar

Options

Clamp options include (machine can be supplied with any combination of liner diameters):
- Layer clamps: 160x140, 140x125, 125x110, 110x90, 90x75, 75x63 & 63x50mm
- 2-piece liners: 160x140, 160x125, 160x110, 160x90, 160x75, 160x63 & 160x50mm
- Narrow clamps: 160x140, 160x125, 160x110, 160x90, 160x75, 160x63 & 160x50mm
Optional stub end device for welding end fittings (available in aluminium or steel)
Optional wheeled trolley available

Electric

230 volt 50/60 Hz 1 phase (2.85 kw 15.6A )
Requires generator minimum 230 volt 3.3 KVA - provide full machine details to generator supplier before purchase
Australia only - This machine is supplied tested & tagged with a 15amp plug

Warranty

Please note technical specifications of Worldpoly machines may change without notice
