PolyRover1000 LF
Worldpoly PolyRover1000 Trench reduces workload and the need for extra support equipment on remote sites allows for faster, more efficient and consistent welding of PE and PP pipelines. Worldpoly PolyRover machines are specifically designed for us
Read More REQUEST A QUOTE
SAFETY

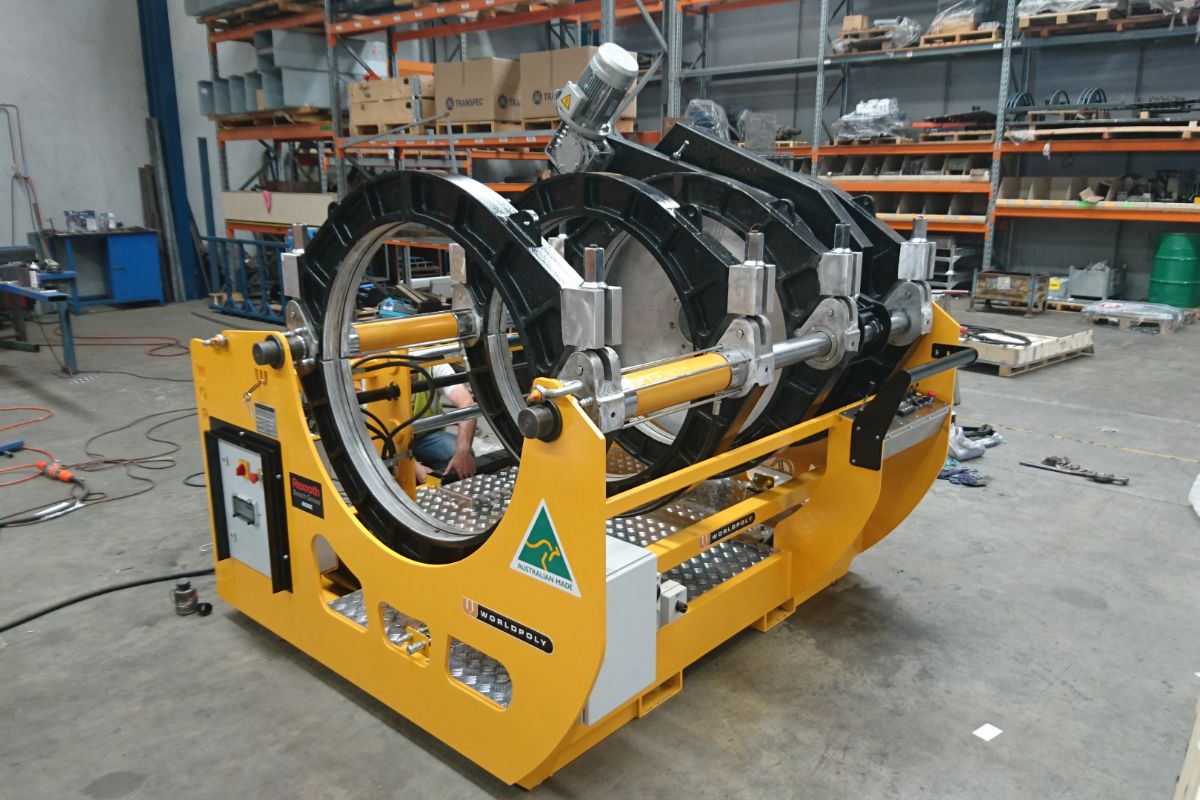

Worldpoly PolyRover1000 Trench pipeline welding machine including on-board hydraulic pump, controls and hydraulically movable facing tool and heating plate, 4 circles of layer clamps 1000mm to 500mm, and hydraulic pipe lifters.
Technical Specifications
General
| Welding range 500mm to 1000mm, SDR 9 (PN16) to SDR 41 (PN4), according to DVS, ISO and AUS/NZ POP003 low force |
| Australian made with genuine 5 year International warranty |
| Main frame includes 4 clamp sets for 1000mm diameter: |
| Easily able to weld between clamps 3 and 4 for tight fittings and fabrications |
| Entire welding frame with 4 clamps easily removed for trench work, allowing accurate alignment |
| Fork lift and overhead lifting points |
| Includes reducing liners to weld pipe within the complete specified range: metric 1000, 900, 800, 710, 630, 560 & 500mm OD |
| Hydraulically lifted cast Aluminium PTFE coated heating plate with electronic temperature control and insulated cover |
| Hydraulically lifted and electrically operated cast Aluminium electric facing tool, thermostatically controlled with current overload protection |
| High quality and remotely serviceable Bosch Rexroth electro-hydraulic pump, valves and controls |
| Wired ready to accept Worldpoly and other data loggers |
| Modular controls located in convenient operator position include: |
| Welding operation controls include; digital pressure readout, countdown timer, mmergency stop |
| Hydraulic pipe lifters front and rear |
| Tool box including spare blades, thermocouple, temperature controller, tools etc |
| Options include: Stub end device for welding end fittings (available in aluminium or steel) |
| Supplied with the machine - Layer clamps metric: 1000x900, 900x800, 800x710, 710x630, 630x560 & 560x500mm |
Electric
| Operating voltage: Standard 400 volt 3 phase 50 Hz 30.8 kw, 50.2 A. |
Options
| Optional Bimini-type cover |
| Two-piece clamps 1000x900, 1000x800, 1000x710, 1000x630, 630x560 & 630x500mm |
| Narrow clamps metric: 1000x900, 900x800, 800x710, 710x630, 630x560 & 560x500mm, as required for welding injection moulded or short-spigot fittings |
