PolyWorkshop18i

Hydraulically operated workshop machine for the production of butt welded fittings from HDPE & PP pipe. CNC operation provides the correct welding parameters, and includes 5000+ weld data logger. Optional pivoting clamps allow for the fabricati

Read More REQUEST A QUOTE

SAFETY

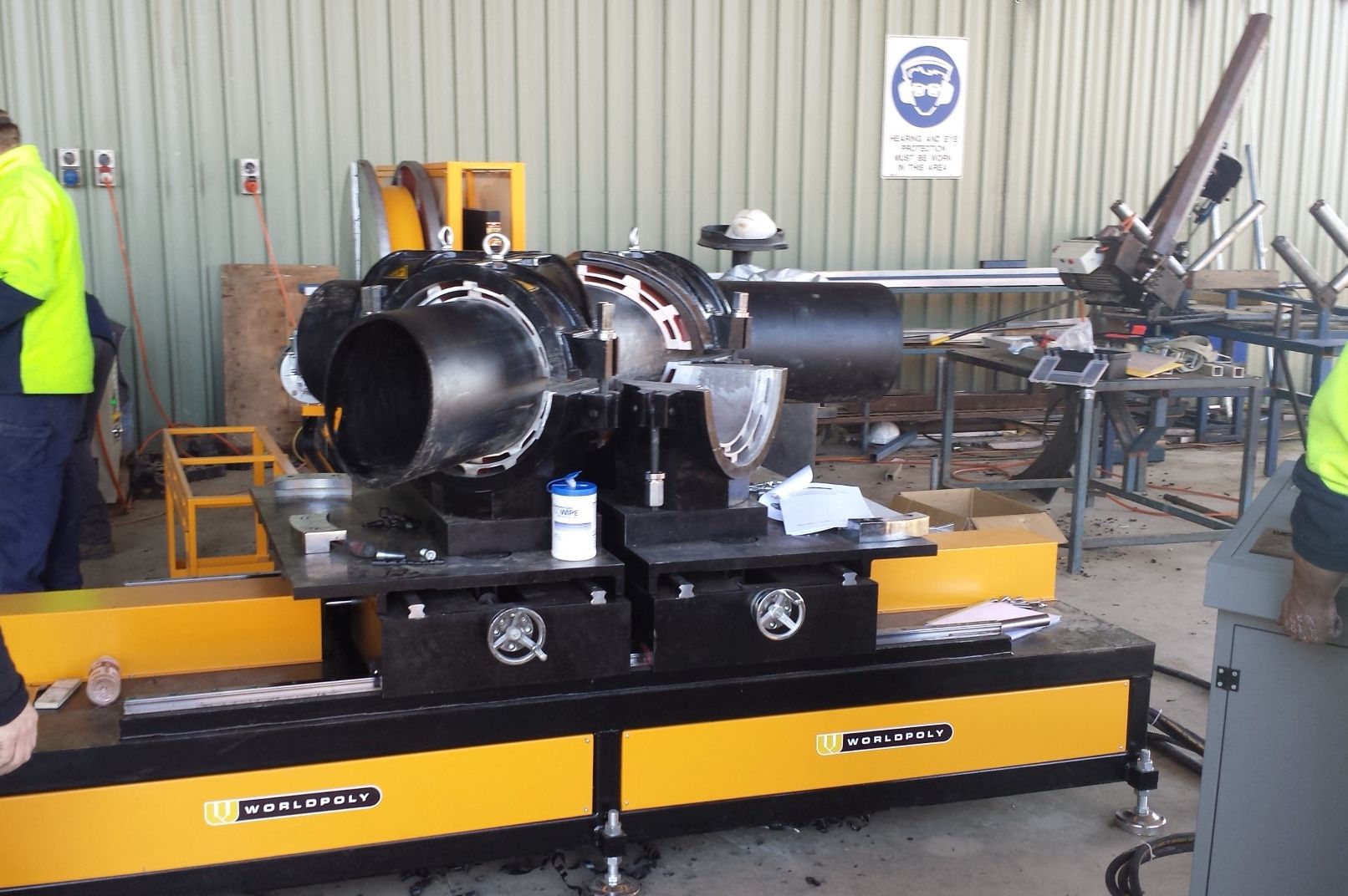

PolyWorkshop18i Fabrication Machine. Basic CNC operated machine ready to accept clamps for bends, equal tees and crosses, and 45 and 60 degree equal branch tees.

Standard Features

  • Welding range 6" to 18" IPS & 160mm to 450mm ISO: 200mm to 450mm SDR 9 (PN20)
  • Bend clamps produce segmented bends range: 6", 8", 10", 12", 14", 16" & 18" IPS or 160, 180, 200, 225, 250, 280, 315, 355, 400 & 450mm.
  • Tee and cross clamps produce90 degree equal tees and crosses range: 6", 8", 10", 12", 14", 16" & 18" IPS or 160, 180, 200, 225, 250, 280, 315, 355, 400 & 450mm.
  • Wye / branch tee clamps produce true-Y, 45 and 60 degree branch tees (Y-branch fittings) range: 6", 8", 10", 12", 14", 16" & 18" IPS or 160, 180, 200, 225, 250, 280, 315, 355, 400 & 450mm.
  • CNC touch-screen control of welding operations and integral data logger are standard.
  • 240 volt 3 phase 60 hz.
  • Genuine 2 year warranty
  • German hydraulic seals.
  • Weight 2,850 kg
  • Cylinder area 12.56cm²
  • Please note technical specifications of Worldpoly machines may change without notice

Technical Specifications

General

Welding range 6" to 18" IPS & 160mm to 450mm ISO: 200mm to 450mm SDR 9 (PN20)
CNC touch-screen control of welding operations and integral data logger are standard.
Weight 2,850 kg
Please note technical specifications of Worldpoly machines may change without notice

Hydraulic

German hydraulic seals.
Cylinder area 12.56cm²

Electric

240 volt 3 phase 60 hz.

Options

Bend clamps produce segmented bends range: 6", 8", 10", 12", 14", 16" & 18" IPS or 160, 180, 200, 225, 250, 280, 315, 355, 400 & 450mm.
Tee and cross clamps produce90 degree equal tees and crosses range: 6", 8", 10", 12", 14", 16" & 18" IPS or 160, 180, 200, 225, 250, 280, 315, 355, 400 & 450mm.
Wye / branch tee clamps produce true-Y, 45 and 60 degree branch tees (Y-branch fittings) range: 6", 8", 10", 12", 14", 16" & 18" IPS or 160, 180, 200, 225, 250, 280, 315, 355, 400 & 450mm.

Warranty

Genuine 2 year warranty
